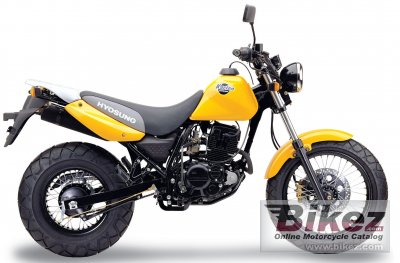

2005 Hyosung RT 125 Karion Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 Hyosung RT 125 Karion.

Basic Specs

Year2005
MakeHyosung
ModelHyosung RT 125 Karion
Cost Euro 2825. Prices depend on country, taxes, accessories, etc.

Engine

Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.9:1
Bore/Stroke57.0 x 48.8 mm (2.2 x 1.9 inches)
Valves/Cylinder4
Fueling
IgnitionElectronic
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final Drive
Clutch
Driveline

Performance

Horespower11.93 HP (8.7 kW)
Torque9.37 Nm (1.0 kgf-m or 6.9 ft.lbs)
Top Speed101.0 km/h (62.8 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.00 litres (2.38 gallons)
Emissions

Chassis

Frame TypeSteel
Rake
Trail
Front SuspensionTelescopic
Front Travel160 mm (6.3 inches)
Rear SuspensionSwingarm, adjustable
Rear Travel
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight135.0 kg (297.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre130/80-18
Rear Tire/Tyre180/80-14
Front BrakesSingle disc
Front Brake Diameter275 mm (10.8 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Hyosung RT 125 Karion. This Allround model is powered by a Single cylinder, four-stroke engine with 124.00 ccm (7.57 cubic inches) of actual displacement before 9.9:1 compression. Fueling is metered via allowing this machine to produce its 11.93 HP (8.7 kW) horsepower and 9.37 Nm (1.0 kgf-m or 6.9 ft.lbs) torque. According to our records engine heat of the Hyosung RT 125 Karion is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 130/80-18 and the rear is 180/80-14 . The entire package is supported by the frame, Steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Hyosung RT 125 Karion was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
