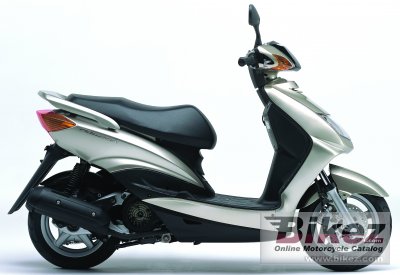

2005 MBK Flame X Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 MBK Flame X.

Basic Specs

Year2005
MakeMBK
ModelMBK Flame X
Cost

Engine

Displacement124.80 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke52.4 x 57.9 mm (2.1 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor. CVK24
IgnitionCDI
Exhaust
LubricationWet sump
CoolingAir

Drivetrain

Gearbox6-speed
Final Drive
ClutchAutomatic
Driveline

Performance

Horespower10.99 HP (8.0 kW)
Torque9.60 Nm (1.0 kgf-m or 7.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.10 litres (1.88 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic
Front Travel
Rear SuspensionDual
Rear Travel
Seat
Seat Height770 mm (30.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance110 mm (4.3 inches)
Wheelbase1,290 mm (50.8 inches)
Dry Weight114.0 kg (251.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/70-¡¡12
Rear Tire/Tyre120/70-¡¡12
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter150 mm (5.9 inches)
Wheels

Comments

It appears you're interested in specifications for the MBK Flame X. This Scooter model is powered by a Single cylinder, four-stroke engine with 124.80 ccm (7.62 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Carburettor. CVK24 allowing this machine to produce its 10.99 HP (8.0 kW) horsepower and 9.60 Nm (1.0 kgf-m or 7.1 ft.lbs) torque. According to our records engine heat of the MBK Flame X is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 110/70-¡¡12 and the rear is 120/70-¡¡12 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The MBK Flame X was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
