These are the known mechanical and performance specifications for your 2005 Suzuki DR-Z 125.
Basic Specs


Year2005
MakeSuzuki

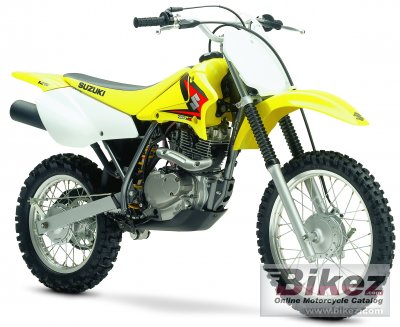

ModelSuzuki DR-Z 125
TypeEnduro / offroad
CostUS$ 2299. Prices depend on country, taxes, accessories, etc.
Engine
Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke57.0 x 48.8 mm (2.2 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity6.60 litres (1.74 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic, oil-damped
Front Travel
Rear SuspensionLink-type, oil-damped
Rear Travel
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,060 mm (41.7 inches)
Total Length1,835 mm (72.2 inches)
Total Width770 mm (30.3 inches)
Ground Clearance260 mm (10.2 inches)
Wheelbase1,245 mm (49.0 inches)
Dry Weight79.0 kg (174.2 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre70/90-17
Rear Tire/Tyre90/90-14
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
