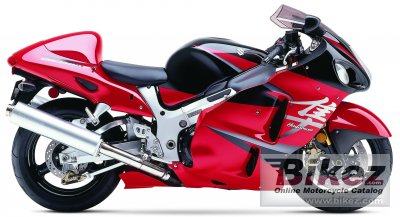

2005 Suzuki GSX 1300 R Hayabusa Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 Suzuki GSX 1300 R Hayabusa.

Basic Specs

Year2005
MakeSuzuki
ModelSuzuki GSX 1300 R Hayabusa
TypeSport
CostUS$ 10899. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1299.00 ccm (79.26 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke81.0 x 63.0 mm (3.2 x 2.5 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity21.00 litres (5.55 gallons)
Emissions

Chassis

Frame TypeRigid twin-spar aluminum frame minimizes weight while maintaining high torsional strength
Rake
Trail
Front SuspensionInverted telescopic, coil spring, fully adjustable spring preload, 14-way adjustable rebound damping and 13-way adjustable compression damping
Front Travel
Rear SuspensionLink-type, gas/oil damped, fully adjustable spring preload, 22-way adjustable compression and rebound damping
Rear Travel
Seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,155 mm (45.5 inches)
Total Length2,140 mm (84.3 inches)
Total Width740 mm (29.1 inches)
Ground Clearance120 mm (4.7 inches)
Wheelbase1,485 mm (58.5 inches)
Dry Weight217.0 kg (478.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/50-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Suzuki GSX 1300 R Hayabusa. This Sport model is powered by a In-line four, four-stroke engine with 1299.00 ccm (79.26 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki GSX 1300 R Hayabusa is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/50-ZR17 . The entire package is supported by the frame, Rigid twin-spar aluminum frame minimizes weight while maintaining high torsional strength. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Suzuki GSX 1300 R Hayabusa was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
