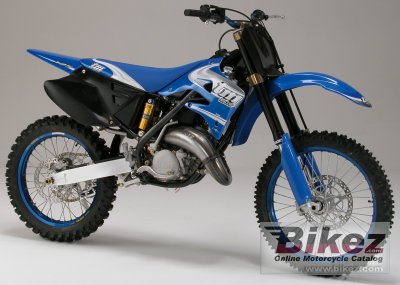

These are the known mechanical and performance specifications for your 2005 TM Racing MX 125.
Basic Specs
Engine
Displacement123.50 ccm (7.54 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression16.7:1
Bore/Stroke54.0 x 54.5 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PWM 38 mm diameter
IgnitionKoukusan CDI electronic w/ variable advance
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveChain
ClutchMultiple-disk in oil-bath with hydraulic control
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity8.00 litres (2.11 gallons)
Emissions
Chassis
Frame TypeCr-Mo steel. Perimetral oval section.
Rake
Trail
Front SuspensionKayba/Paioli USD 48 mm
Front Travel
Rear SuspensionOhlins
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre100/90-19
Front BrakesSingle disc
Front Brake Diameter270 mm (10.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter245 mm (9.6 inches)
Wheels
Comments
