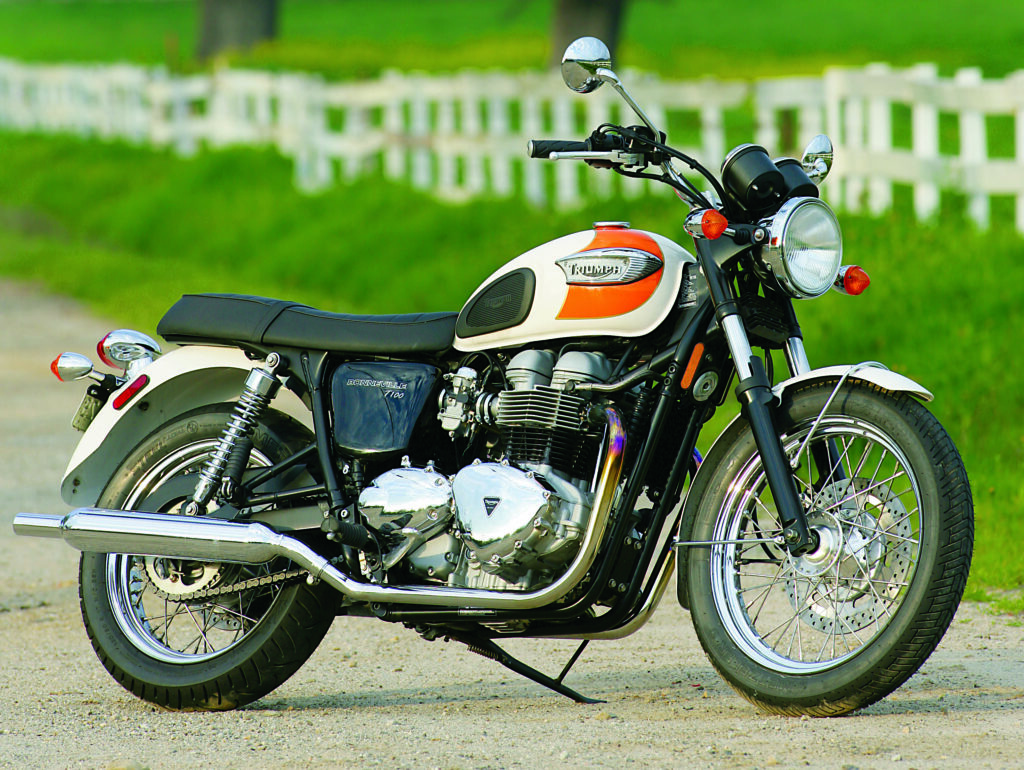

These are the known mechanical and performance specifications for your 2005 Triumph Bonneville T 100.
Basic Specs

Engine
Displacement865.00 ccm (52.78 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke90.0 x 68.0 mm (3.5 x 2.7 inches)
Valves/Cylinder
FuelingCarburettor. Twin carburettors with throttle position sensor and electric carburettor heaters
IgnitionDigital - inductive type
Exhaust
Lubrication
CoolingAir
Performance
Horespower64.00 HP (46.7 kW)
Torque68.00 Nm (6.9 kgf-m or 50.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity16.60 litres (4.39 gallons)
Emissions
Chassis
Frame TypeTubular steel cradle
Rake28.0°
Trail
Front Suspension41mm forks
Front Travel
Rear SuspensionChromed spring twin shocks with adjustable preloads
Rear Travel
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,230 mm (87.8 inches)
Total Width840 mm (33.1 inches)
Ground Clearance
Wheelbase1,500 mm (59.1 inches)
Dry Weight205.0 kg (451.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre100/90-19
Rear Tire/Tyre130/80-17
Front BrakesSingle disc. 2-piston calipers
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. 2-piston calipers
Rear Brake Diameter255 mm (10.0 inches)
Wheels
