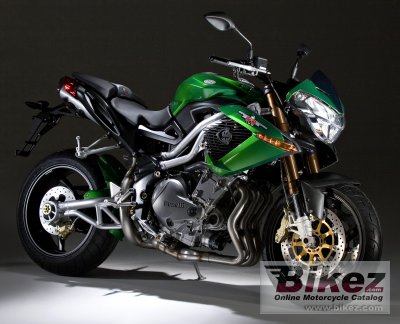

2006 Benelli TnT 1130 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Benelli TnT 1130.

Basic Specs

Year2006
MakeBenelli
ModelBenelli TnT 1130
Cost

Engine

Displacement1130.00 ccm (68.95 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke88.0 x 62.0 mm (3.5 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. Electronic injection with 1 injector per cylinder
IgnitionSingle coil inductive discharge electronic ignition
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet clutch
Driveline

Performance

Horespower135.44 HP (98.9 kW)
Torque117.00 Nm (11.9 kgf-m or 86.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame TypeMixed solution. Front ASD steel tube trellis, fastened with drawer screws to boxed rear section, aluminium alloy castings.
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,419 mm (55.9 inches)
Dry Weight199.0 kg (438.7 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre190/50-17
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Benelli TnT 1130. This Naked bike model is powered by a In-line three, four-stroke engine with 1130.00 ccm (68.95 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection. Electronic injection with 1 injector per cylinder allowing this machine to produce its 135.44 HP (98.9 kW) horsepower and 117.00 Nm (11.9 kgf-m or 86.3 ft.lbs) torque. According to our records engine heat of the Benelli TnT 1130 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 190/50-17 . The entire package is supported by the frame, Mixed solution. Front ASD steel tube trellis, fastened with drawer screws to boxed rear section, aluminium alloy castings.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Benelli TnT 1130 was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
