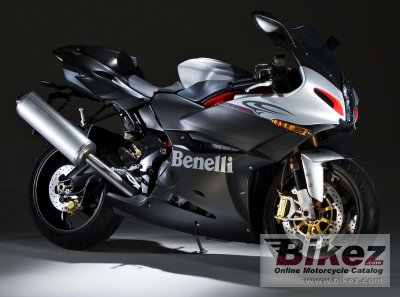

These are the known mechanical and performance specifications for your 2006 Benelli Tornado 1130.
Basic Specs

Engine
Displacement1130.00 ccm (68.95 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression
Bore/Stroke88.0 x 62.0 mm (3.5 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. Electronic injection with 1 injector per cylinder
IgnitionSingle coil inductive discharge electronic ignition
Exhaust
Lubrication
CoolingLiquid
Performance
Horespower160.92 HP (117.5 kW)
Torque124.00 Nm (12.6 kgf-m or 91.5 ft.lbs)
Top Speed
Chassis
Frame TypeMixed design. Front trusses in ASD tubular steel securely fitted with traction screws with aluminium alloy casting rear section. Steering head angle fixed 23,5°
Rake
Trail
Front SuspensionMarzocchi “upside down” stanchion fork
Front Travel
Rear SuspensionAsymmetric swingarm, composed of cast aluminium and pressed in aluminium alloy, with “Extreme Technology” single shock absorber damping,rebound and spring pre-load adjustment.
Rear Travel
Seat
Seat Height818 mm (32.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,910 mm (75.2 inches)
Total Width
Ground Clearance
Wheelbase1,419 mm (55.9 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-17
Rear Tire/Tyre190/50-17
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesDouble disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels
Comments
