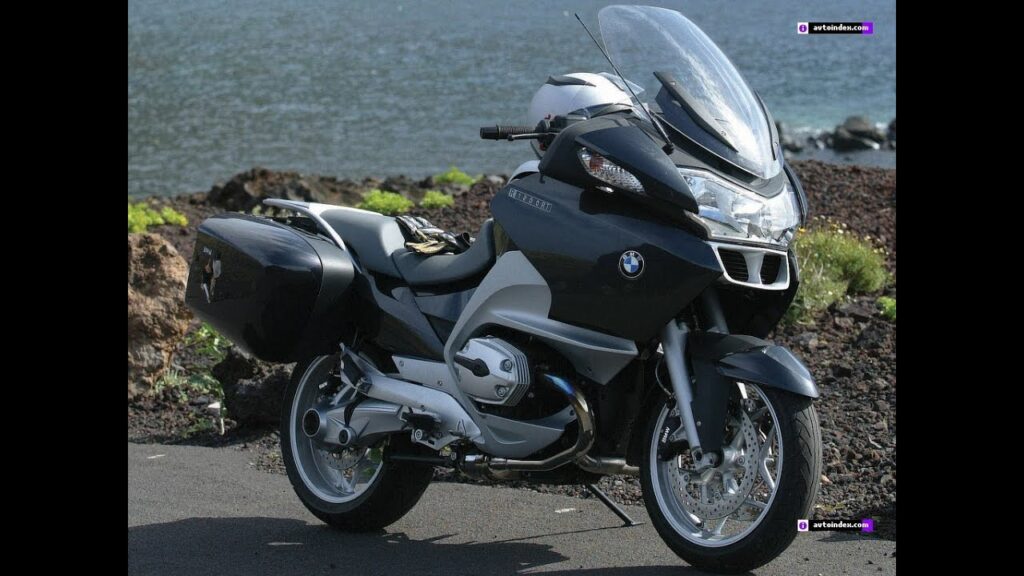

2006 BMW R 1200 RT Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 BMW R 1200 RT.

Basic Specs

Year2006
MakeBMW
ModelBMW R 1200 RT
Cost

Engine

Displacement1170.00 ccm (71.39 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke101.0 x 73.0 mm (4.0 x 2.9 inches)
Valves/Cylinder4
FuelingInjection. Electronic intake pipe injection/digital engine management: BMW engine management, BMS-K with overrun fuel cut-off, dual ignition
Ignition
Exhaust
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchSingle-disc dry clutch, hydraulically operated
Driveline

Performance

Horespower108.62 HP (79.3 kW)
Torque115.00 Nm (11.7 kgf-m or 84.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption3.60 litres/100 km (27.8 km/l or 65.34 mpg)
Fuel Capacity27.00 litres (7.13 gallons)
Emissions83.5 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.6°
Trail110 mm (4.3 inches)
Front SuspensionBMW Motorrad Telelever
Front Travel120 mm (4.7 inches)
Rear SuspensionDie-cast aluminium single-sided swinging arm with BMW Motorrad Paralever, WAD suspension element
Rear Travel135 mm (5.3 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,430 mm (56.3 inches)
Total Length2,230 mm (87.8 inches)
Total Width905 mm (35.6 inches)
Ground Clearance
Wheelbase1,480 mm (58.3 inches)
Dry Weight229.0 kg (504.9 pounds)
Wet Weight259.0 kg (571.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesDouble disc
Rear Brake Diameter265 mm (10.4 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW R 1200 RT. This Touring model is powered by a Twin, four-stroke engine with 1170.00 ccm (71.39 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Injection. Electronic intake pipe injection/digital engine management: BMW engine management, BMS-K with overrun fuel cut-off, dual ignition allowing this machine to produce its 108.62 HP (79.3 kW) horsepower and 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) torque. According to our records engine heat of the BMW R 1200 RT is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Double disc rear brakes. The BMW R 1200 RT was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
