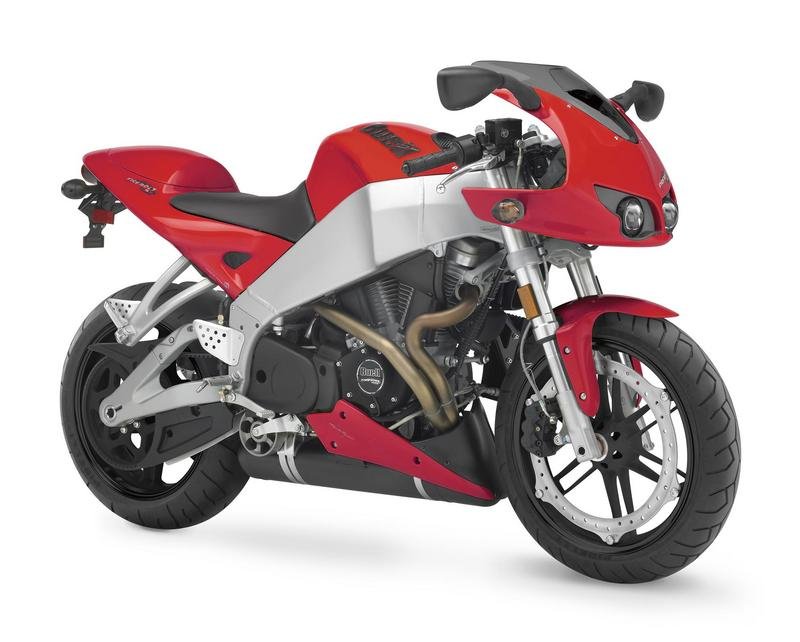

2006 Buell Firebolt XB9R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Buell Firebolt XB9R.

Basic Specs

Year2006
MakeBuell
ModelBuell Firebolt XB9R
TypeSport
CostUS$ 8895. Prices depend on country, taxes, accessories, etc.

Engine

Displacement984.00 ccm (60.04 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke88.9 x 79.4 mm (3.5 x 3.1 inches)
Valves/Cylinder
Fueling
Ignition
ExhaustMass centralized muffler mounted under the bike
LubricationDry sump
CoolingOil & air

Drivetrain

Gearbox5-speed
Final DriveBelt
ClutchWet, multiplate, compensated, reduced lever effort
Driveline

Performance

Horespower91.99 HP (67.1 kW)
Torque94.90 Nm (9.7 kgf-m or 70.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.10 litres/100 km (24.4 km/l or 57.37 mpg)
Fuel Capacity14.50 litres (3.83 gallons)
Emissions95.1 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake21.0°
Trail83 mm (3.3 inches)
Front SuspensionShowa® inverted fork with adjustable compression damping, rebound damping and spring preload
Front Travel120 mm (4.7 inches)
Rear SuspensionShowa® Fully adjustable, coil-over monoshock with remote, underseat reservoir
Rear Travel129 mm (5.1 inches)
Seat
Seat Height
Alt. Seat Height
Total Height1,100 mm (43.3 inches)
Total Length1,935 mm (76.2 inches)
Total Width715 mm (28.1 inches)
Ground Clearance110 mm (4.3 inches)
Wheelbase1,318 mm (51.9 inches)
Dry Weight175.0 kg (385.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesSingle disc. 6-piston, fixed caliper. Single-sided, inside-out, floating rotor
Front Brake Diameter375 mm (14.8 inches)
Rear BrakesSingle disc. Single-piston, floating caliper. Fixed rotor
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Buell Firebolt XB9R. This Sport model is powered by a V2, four-stroke engine with 984.00 ccm (60.04 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via allowing this machine to produce its 91.99 HP (67.1 kW) horsepower and 94.90 Nm (9.7 kgf-m or 70.0 ft.lbs) torque. According to our records engine heat of the Buell Firebolt XB9R is moderated by Oil & air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 6-piston, fixed caliper. Single-sided, inside-out, floating rotor front brakes and Single disc. Single-piston, floating caliper. Fixed rotor rear brakes. The Buell Firebolt XB9R was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
