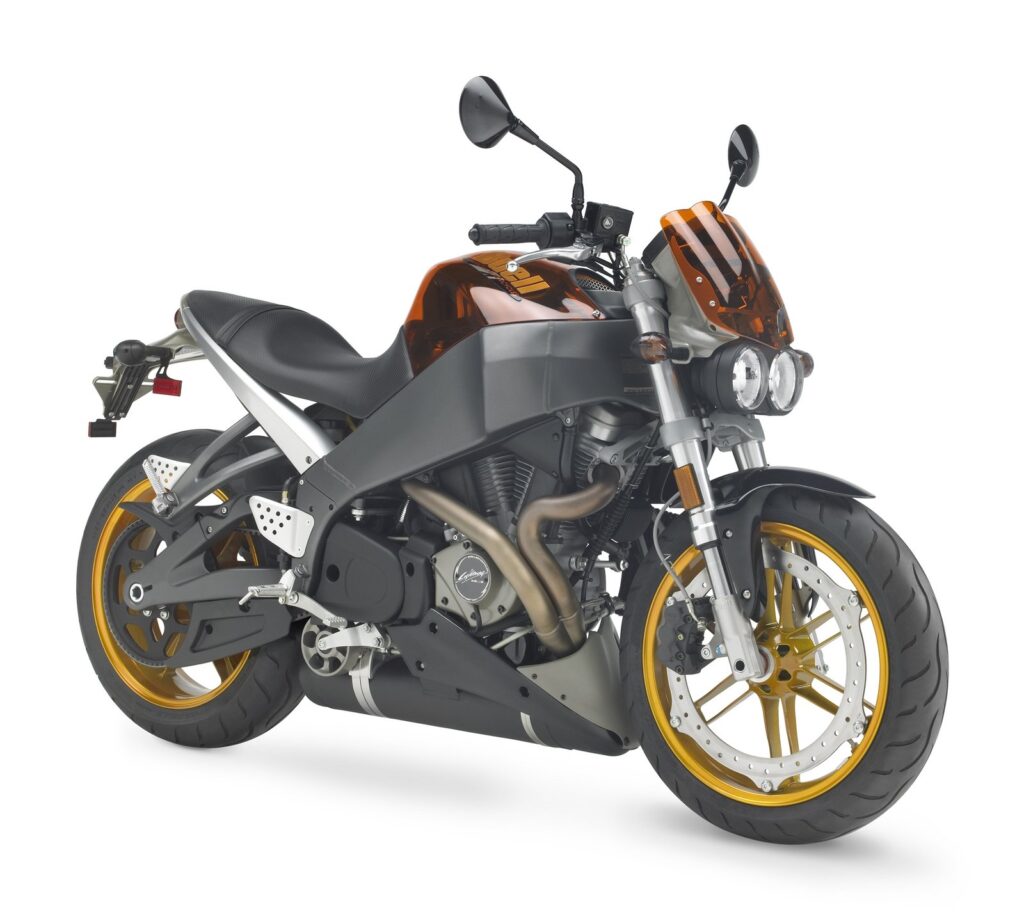

2006 Buell Lightning XB12Scg Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Buell Lightning XB12Scg.

Basic Specs

Year2006
MakeBuell
ModelBuell Lightning XB12Scg
CostUS$ 10495. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1203.00 ccm (73.41 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves/Cylinder
FuelingInjection
Ignition
ExhaustInterActive, Mass centralized muffler mounted under the bike
Lubrication
CoolingOil & air

Drivetrain

Gearbox5-speed
Final DriveBelt
ClutchWet, multiplate, compensated, reduced lever effort
Driveline

Performance

Horespower103.00 HP (75.2 kW)
Torque113.90 Nm (11.6 kgf-m or 84.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.45 litres (3.82 gallons)
Emissions

Chassis

Frame Type
Rake
Trail84 mm (3.3 inches)
Front SuspensionShowa® inverted fork with adjustable compression damping, rebound damping and spring preload
Front Travel74 mm (2.9 inches)
Rear SuspensionShowa® Fully adjustable, coil-over monoshock with remote, underseat reservoir
Rear Travel90 mm (3.6 inches)
Seat
Seat Height
Alt. Seat Height
Total Height1,049 mm (41.3 inches)
Total Length1,923 mm (75.7 inches)
Total Width754 mm (29.7 inches)
Ground Clearance1,000 mm (39.4 inches)
Wheelbase1,318 mm (51.9 inches)
Dry Weight179.2 kg (395.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Buell Lightning XB12Scg. This Naked bike model is powered by a V2, four-stroke engine with 1203.00 ccm (73.41 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 103.00 HP (75.2 kW) horsepower and 113.90 Nm (11.6 kgf-m or 84.0 ft.lbs) torque. According to our records engine heat of the Buell Lightning XB12Scg is moderated by Oil & air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Buell Lightning XB12Scg was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Available with carburator
