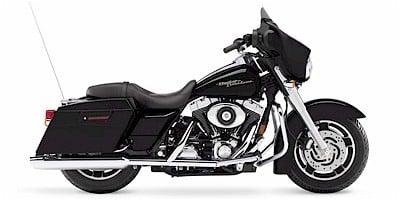

2006 Harley-Davidson FLHX Street Glide Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Harley-Davidson FLHX Street Glide.

Basic Specs

Year2006
MakeHarley-Davidson
ModelHarley-Davidson FLHX Street Glide
CostUS$ 17795. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1442.15 ccm (88.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.9:1
Bore/Stroke95.3 x 101.6 mm (3.8 x 4.0 inches)
Valves/Cylinder2
FuelingCarburettor. 40mm constant velocity carburetor with enrichener and accelerator pump
Ignition
ExhaustChrome, cross-over duals
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline

Performance

Horespower
Torque116.61 Nm (11.9 kgf-m or 86.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.34 litres/100 km (18.7 km/l or 44.05 mpg)
Fuel Capacity18.92 litres (5.00 gallons)
Emissions123.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0°
Trail157 mm (6.2 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height668 mm (26.3 inches) If adjustable, lowest setting.
Alt. Seat Height693 mm (27.3 inches) If adjustable, highest setting.
Total Height
Total Length2,400 mm (94.5 inches)
Total Width
Ground Clearance119 mm (4.7 inches)
Wheelbase1,613 mm (63.5 inches)
Dry Weight337.9 kg (745.0 pounds)
Wet Weight352.0 kg (776.0 pounds)

Wheels & Brakes

Front Tire/TyreMT90-B16
Rear Tire/TyreMU85-B16
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FLHX Street Glide. This Custom / cruiser model is powered by a V2, four-stroke engine with 1442.15 ccm (88.00 cubic inches) of actual displacement before 8.9:1 compression. Fueling is metered via Carburettor. 40mm constant velocity carburetor with enrichener and accelerator pump allowing this machine to produce its horsepower and 116.61 Nm (11.9 kgf-m or 86.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FLHX Street Glide is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is MT90-B16 and the rear is MU85-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Harley-Davidson FLHX Street Glide was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
