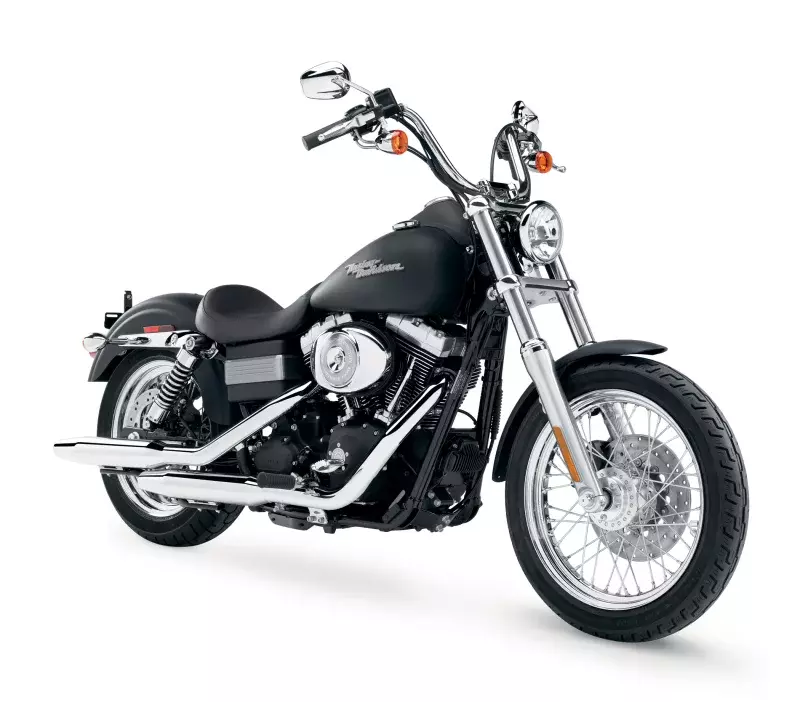

These are the known mechanical and performance specifications for your 2006 Harley-Davidson FXDBI Street Bob.
Basic Specs
Year2006
MakeHarley-Davidson
ModelHarley-Davidson FXDBI Street Bob
TypeCustom / cruiser
CostUS$ 13195. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1442.15 ccm (88.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.9:1
Bore/Stroke95.3 x 101.6 mm (3.8 x 4.0 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI )
Ignition
ExhaustChrome, staggered shorty duals
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline
Performance
Horespower
Torque115.26 Nm (11.8 kgf-m or 85.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.78 litres (4.70 gallons)
Emissions
Chassis
Frame Type
Rake29.0°
Trail119 mm (4.7 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length2,357 mm (92.8 inches)
Total Width
Ground Clearance142 mm (5.6 inches)
Wheelbase1,631 mm (64.2 inches)
Dry Weight287.6 kg (634.0 pounds)
Wet Weight302.5 kg (667.0 pounds)
Wheels & Brakes
Front Tire/Tyre100/90-19
Rear Tire/Tyre160/70-B17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
