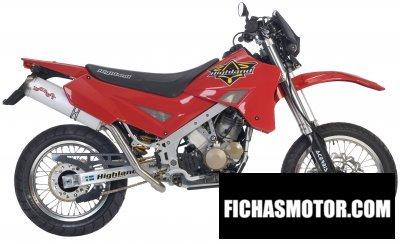

2006 Highland Allroad Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Highland Allroad.

Basic Specs

Year2006
MakeHighland
ModelHighland Allroad
Cost

Engine

Displacement936.00 ccm (57.11 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.1:1
Bore/Stroke95.0 x 66.0 mm (3.7 x 2.6 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower83.81 HP (61.2 kW)
Torque104.00 Nm (10.6 kgf-m or 76.7 ft.lbs)
Top Speed200.0 km/h (124.3 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.00 litres (5.28 gallons)
Emissions

Chassis

Frame TypeCrMo
Rake26.0°
Trail
Front SuspensionMarzocchi.
Front Travel280 mm (11.0 inches)
Rear SuspensionÖhlins
Rear Travel280 mm (11.0 inches)
Seat
Seat Height720 mm (28.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,500 mm (59.1 inches)
Dry Weight164.0 kg (361.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Bremo
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Bremo
Rear Brake Diameter260 mm (10.2 inches)
Wheels

Comments

It appears you're interested in specifications for the Highland Allroad. This Enduro / offroad model is powered by a V2, four-stroke engine with 936.00 ccm (57.11 cubic inches) of actual displacement before 11.1:1 compression. Fueling is metered via Injection allowing this machine to produce its 83.81 HP (61.2 kW) horsepower and 104.00 Nm (10.6 kgf-m or 76.7 ft.lbs) torque. According to our records engine heat of the Highland Allroad is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, CrMo. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Bremo front brakes and Single disc. Bremo rear brakes. The Highland Allroad was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
