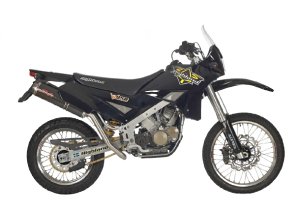

These are the known mechanical and performance specifications for your 2006 Highland Desert Storm.
Basic Specs
Engine
Displacement936.00 ccm (57.11 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.1:1
Bore/Stroke95.0 x 66.0 mm (3.7 x 2.6 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
LubricationWet sump
CoolingLiquid
Performance
Horespower83.81 HP (61.2 kW)
Torque104.00 Nm (10.6 kgf-m or 76.7 ft.lbs)
Top Speed200.0 km/h (124.3 mph)
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity20.00 litres (5.28 gallons)
Emissions
Chassis
Frame TypeCrMo
Rake26.0°
Trail
Front SuspensionMarzocchi.
Front Travel280 mm (11.0 inches)
Rear SuspensionÖhlins
Rear Travel300 mm (11.8 inches)
Seat
Seat Height910 mm (35.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance300 mm (11.8 inches)
Wheelbase1,530 mm (60.2 inches)
Dry Weight168.0 kg (370.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre150/70-18
Front BrakesSingle disc. Bremo
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Bremo
Rear Brake Diameter260 mm (10.2 inches)
Wheels
