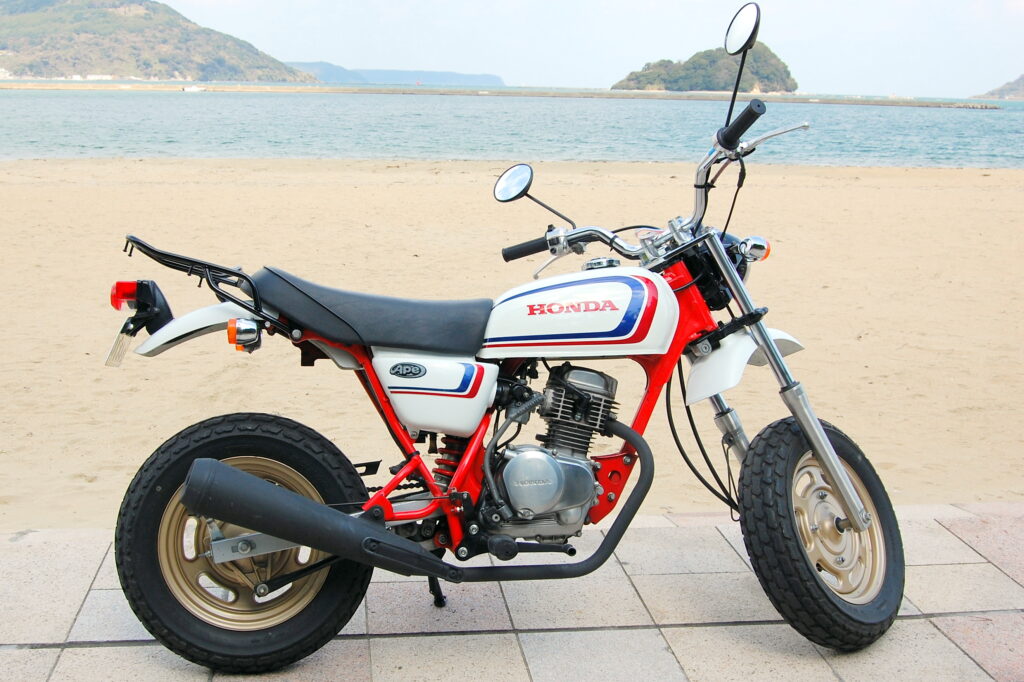

2006 Honda Ape 50 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Honda Ape 50.

Basic Specs

Year2006
MakeHonda
ModelHonda Ape 50
TypeSport
Cost

Engine

Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke42.0 x 35.0 mm (1.7 x 1.4 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionCDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final Drive
Clutch
Driveline

Performance

Horespower
Torque3.60 Nm (0.4 kgf-m or 2.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity5.50 litres (1.45 gallons)
Emissions

Chassis

Frame Type
Rake
Trail89 mm (3.5 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height755 mm (29.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,155 mm (45.5 inches)
Total Length
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,710 mm (67.3 inches)
Dry Weight75.0 kg (165.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front Brakes
Front Brake Diameter
Rear Brakes
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda Ape 50. This Sport model is powered by a Single cylinder, four-stroke engine with 49.00 ccm (2.99 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Carburettor allowing this machine to produce its horsepower and 3.60 Nm (0.4 kgf-m or 2.7 ft.lbs) torque. According to our records engine heat of the Honda Ape 50 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on front brakes and rear brakes. The Honda Ape 50 was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Available in a deluxe version.
