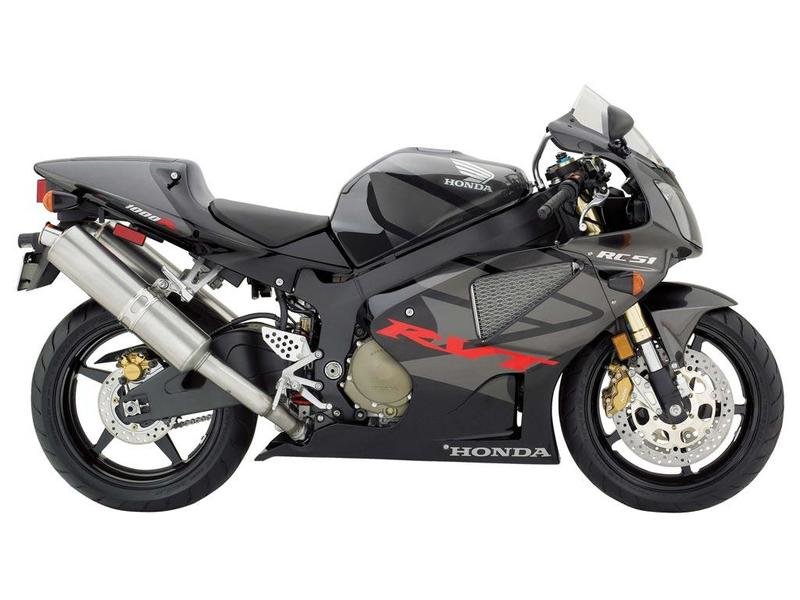

2006 Honda RC51 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Honda RC51.

Basic Specs

Year2006
MakeHonda
ModelHonda RC51
TypeSport
CostUS$ 11999. Prices depend on country, taxes, accessories, etc.
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement999.00 ccm (60.96 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke100.0 x 63.6 mm (3.9 x 2.5 inches)
Valves/Cylinder4
FuelingInjection. Programmed Fuel Injection with two injectors per cylinder
IgnitionComputer-controlled digital with three-dimensional mapping
Exhaust
Lubrication
CoolingLiquid
Spark Plugs

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline
Chain Clutch Plates

Performance

Horespower
Torque
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.16 litres (4.80 gallons)
Emissions
Fuel Bottles & Cans

Chassis

Frame Type
Rake23.3°
Trail95 mm (3.7 inches)
Front Suspension43.0mm inverted HMAS cartridge fork with spring-preload, rebound and compression-damping adjustability
Front Travel130 mm (5.1 inches)
Rear SuspensionPro-Link HMAS single shock with spring-preload, rebound and compression-damping adjustability
Rear Travel119 mm (4.7 inches)
Seat
Seat Height826 mm (32.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,420 mm (55.9 inches)
Dry Weight199.1 kg (439.0 pounds)
Wet Weight
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/50-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Honda RC51. This Sport model is powered by a V2, four-stroke engine with 999.00 ccm (60.96 cubic inches) of actual displacement before 10.8:1 compression. Fueling is metered via Injection. Programmed Fuel Injection with two injectors per cylinder allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda RC51 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/50-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Honda RC51 was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: RVT1000R
