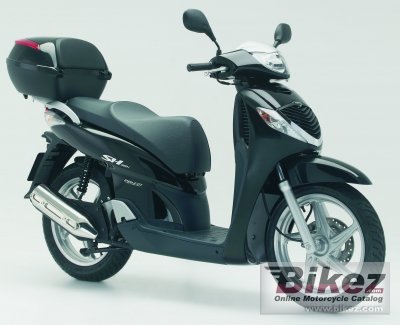

2006 Honda SH 150i Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Honda SH 150i.

Basic Specs

Year2006
MakeHonda
ModelHonda SH 150i
Cost

Engine

Displacement153.00 ccm (9.34 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke58.0 x 57.8 mm (2.3 x 2.3 inches)
Valves/Cylinder
FuelingInjection. PGM-FI electronic fuel injection
IgnitionDigital transistorised with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox
Final DriveBelt
ClutchAutomatic; centrifugal
Driveline

Performance

Horespower15.55 HP (11.4 kW)
Torque13.40 Nm (1.4 kgf-m or 9.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.50 litres (1.98 gallons)
Emissions

Chassis

Frame Type
Rake
Trail84 mm (3.3 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance149 mm (5.9 inches)
Wheelbase1,335 mm (52.6 inches)
Dry Weight127.0 kg (280.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda SH 150i. This Scooter model is powered by a Single cylinder, four-stroke engine with 153.00 ccm (9.34 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection. PGM-FI electronic fuel injection allowing this machine to produce its 15.55 HP (11.4 kW) horsepower and 13.40 Nm (1.4 kgf-m or 9.9 ft.lbs) torque. According to our records engine heat of the Honda SH 150i is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Honda SH 150i was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
