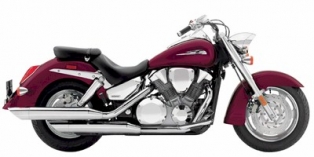

These are the known mechanical and performance specifications for your 2006 Honda VTX 1300 R.
Basic Specs
Year2006
MakeHonda
ModelHonda VTX 1300 R
TypeCustom / cruiser
CostUS$ 9599. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1312.00 ccm (80.06 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke89.5 x 104.3 mm (3.5 x 4.1 inches)
Valves/Cylinder
FuelingCarburettor. Single 38mm CV
IgnitionDigital with three-dimensional mapping, two spark plugs per cylinder
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.16 litres (4.80 gallons)
Emissions
Chassis
Frame Type
Rake32.0°
Trail144 mm (5.7 inches)
Front Suspension41 mm fork
Front Travel130 mm (5.1 inches)
Rear SuspensionDual shocks with five-position spring-preload adjustability
Rear Travel94 mm (3.7 inches)
Seat
Seat Height695 mm (27.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,669 mm (65.7 inches)
Dry Weight303.5 kg (669.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre140/80-17
Rear Tire/Tyre170/80-15
Front BrakesSingle disc
Front Brake Diameter336 mm (13.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter296 mm (11.7 inches)
Wheels
Comments
Model ID: VT1300R
