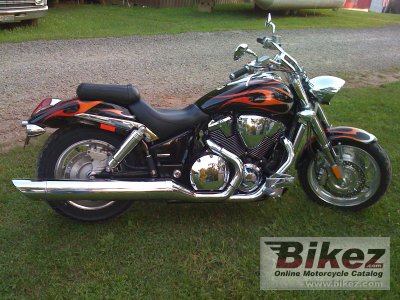

These are the known mechanical and performance specifications for your 2006 Honda VTX 1800 Sport Cruiser.
Basic Specs
Year2006
MakeHonda
ModelHonda VTX 1800 Sport Cruiser
TypeCustom / cruiser
CostUS$ 13499. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1795.00 ccm (109.53 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke101.0 x 112.0 mm (4.0 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Programmed Fuel Injection (PGM-FI) with automatic choke
IgnitionDigital with three-dimensional mapping, two spark plugs per cylinder
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.16 litres (4.80 gallons)
Emissions
Chassis
Frame Type
Rake31.5°
Trail144 mm (5.7 inches)
Front Suspension45.0mm inverted fork
Front Travel130 mm (5.1 inches)
Rear SuspensionDual shocks with five-position spring-preload adjustability
Rear Travel99 mm (3.9 inches)
Seat
Seat Height701 mm (27.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,715 mm (67.5 inches)
Dry Weight337.0 kg (743.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre130/70-R18
Rear Tire/Tyre180/55-R18
Front BrakesDouble disc
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter316 mm (12.4 inches)
Wheels
Comments
Model ID: VTX1800F1(Style F)
