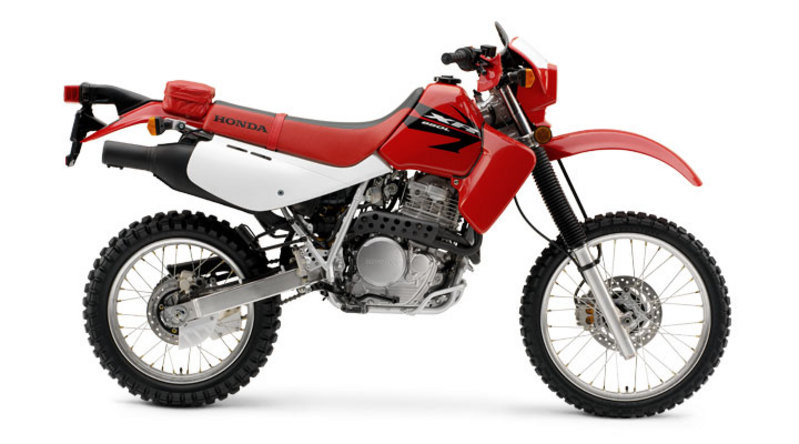

These are the known mechanical and performance specifications for your 2006 Honda XR 650 L.
Basic Specs
Year2006
MakeHonda
ModelHonda XR 650 L
TypeEnduro / offroad
CostUS$ 5799. Prices depend on country, taxes, accessories, etc.
Engine
Displacement644.00 ccm (39.30 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression8.3:1
Bore/Stroke100.0 x 82.0 mm (3.9 x 3.2 inches)
Valves/Cylinder
FuelingCarburettor. 42.5mm diaphragm-type CV
IgnitionSolid-state CD with electronic advance
Exhaust
LubricationDry sump
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity10.59 litres (2.80 gallons)
Emissions
Chassis
Frame Type
Rake27.0°
Trail102 mm (4.0 inches)
Front Suspension43mm air-adjustable leading-axle Showa cartridge fork with 16-position compression-damping adjustability
Front Travel295 mm (11.6 inches)
Rear SuspensionPro-Link Showa single-shock with spring-preload, 20-position compression- and 20-position rebound-damping adjustability
Rear Travel279 mm (11.0 inches)
Seat
Seat Height940 mm (37.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance330 mm (13.0 inches)
Wheelbase1,455 mm (57.3 inches)
Dry Weight147.0 kg (324.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/70-21
Rear Tire/Tyre110/90-18
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
Model ID: XR650L
