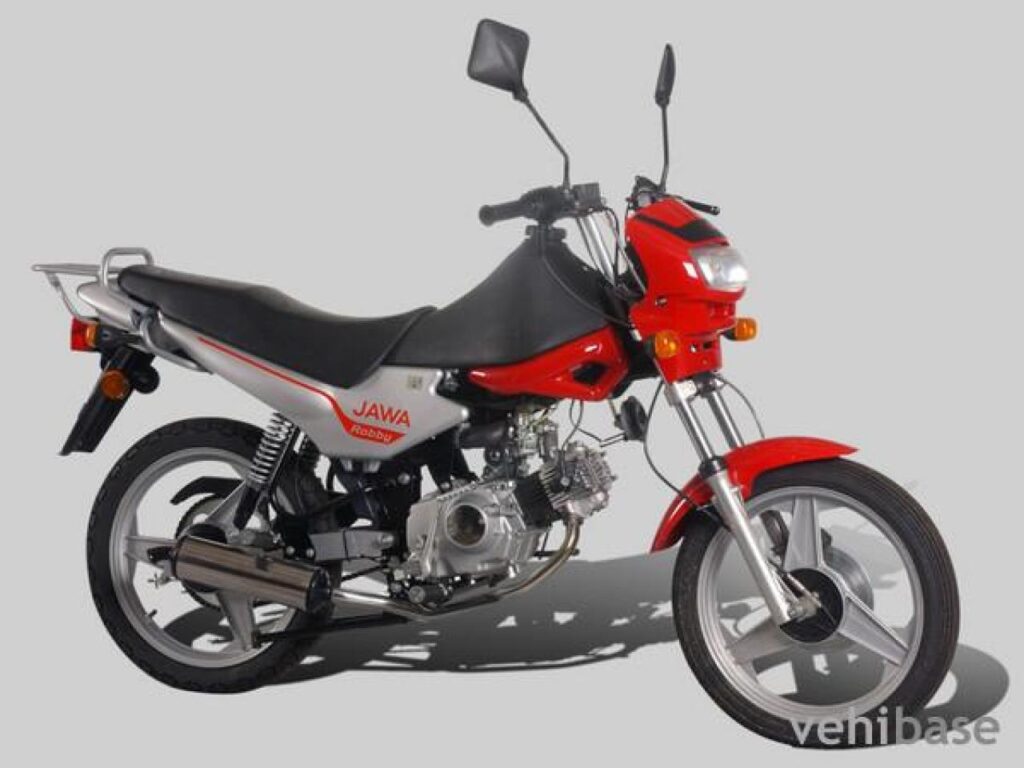

These are the known mechanical and performance specifications for your 2006 Jawa-CZ 50 Robby.
Basic Specs
Engine
Displacement49.50 ccm (3.02 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression8.5:1
Bore/Stroke39.0 x 41.4 mm (1.5 x 1.6 inches)
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingAir
Performance
Horespower3.35 HP (2.4 kW)
Torque3.20 Nm (0.3 kgf-m or 2.4 ft.lbs)
Top Speed48.0 km/h (29.8 mph)
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity24.60 litres (6.50 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic forks 80mm
Front Travel
Rear SuspensionTelescopic unit 70mm
Rear Travel
Seat
Seat Height730 mm (28.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,200 mm (47.2 inches)
Dry Weight80.0 kg (176.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre-.
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter200 mm (7.9 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter124 mm (4.9 inches)
Wheels
Comments
