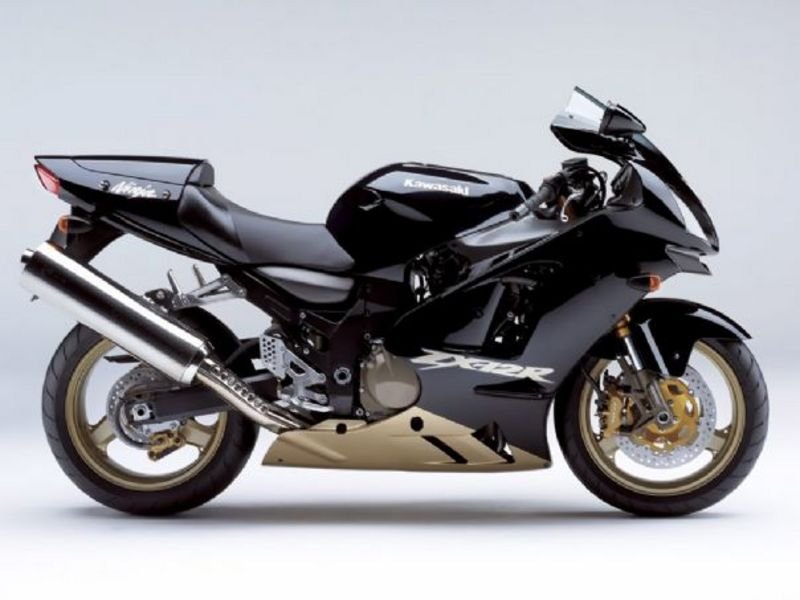

2006 Kawasaki Ninja ZX-12R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Kawasaki Ninja ZX-12R.

Basic Specs

Year2006
MakeKawasaki
ModelKawasaki Ninja ZX-12R
TypeSport
Cost

Engine

Displacement1198.00 ccm (73.10 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression12.2:1
Bore/Stroke83.0 x 55.4 mm (3.3 x 2.2 inches)
Valves/Cylinder
FuelingInjection. Fuel injection with 46 mm throttle bodies and sub throttles
IgnitionDigital
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame TypeAluminum monocoque
Rake23.5°
Trail
Front Suspension43 mm inverted hydraulic telescopic fork with adjustable compression and rebound damping, adjustable spring preload.
Front Travel
Rear SuspensionUNI-TRAK® system with single shock, adjustable compression and rebound damping, adjustable ride height, and adjustable preload .
Rear Travel
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,085 mm (82.1 inches)
Total Width
Ground Clearance
Wheelbase1,450 mm (57.1 inches)
Dry Weight210.0 kg (463.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre200/50-17
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Ninja ZX-12R. This Sport model is powered by a In-line four, four-stroke engine with 1198.00 ccm (73.10 cubic inches) of actual displacement before 12.2:1 compression. Fueling is metered via Injection. Fuel injection with 46 mm throttle bodies and sub throttles allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki Ninja ZX-12R is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 200/50-17 . The entire package is supported by the frame, Aluminum monocoque. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Kawasaki Ninja ZX-12R was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
