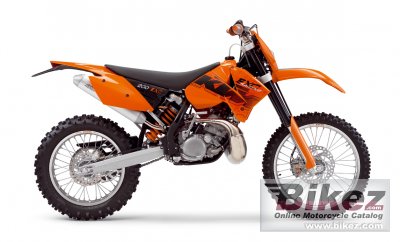

2006 KTM 200 EXC Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 KTM 200 EXC.

Basic Specs

Year2006
MakeKTM
ModelKTM 200 EXC
Cost

Engine

Displacement193.00 ccm (11.78 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression11.0:1
Bore/Stroke64.0 x 60.0 mm (2.5 x 2.4 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PWK 38 AG
IgnitionKokusan digital 2K-3
ExhaustAluminum
LubricationMixture oil lubrication 1:40
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet multi-disc clutch, operated hydraulically
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.50 litres (2.25 gallons)
Emissions

Chassis

Frame TypeCentral double-cradle-type 25 CrMo4
Rake27.0°
Trail112 mm (4.4 inches)
Front SuspensionWP-USD 48 mm (1.89 inches)
Front Travel300 mm (11.8 inches)
Rear SuspensionWP-PDS-shock absorber
Rear Travel335 mm (13.2 inches)
Seat
Seat Height925 mm (36.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance390 mm (15.4 inches)
Wheelbase1,471 mm (57.9 inches)
Dry Weight99.8 kg (220.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre120/90-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the KTM 200 EXC. This Enduro / offroad model is powered by a Single cylinder, two-stroke engine with 193.00 ccm (11.78 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Carburettor. Keihin PWK 38 AG allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 200 EXC is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 120/90-18 . The entire package is supported by the frame, Central double-cradle-type 25 CrMo4. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The KTM 200 EXC was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Not available in the USA.
