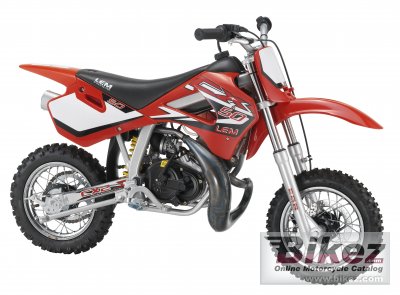

These are the known mechanical and performance specifications for your 2006 Lem CX2.
Basic Specs

Engine
Displacement49.80 ccm (3.04 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke
Valves/Cylinder1
Fueling
Ignition
Exhaust
Lubrication3% mixture
CoolingAir
Performance
Horespower3.20 HP (2.3 kW)
Torque1.60 Nm (0.2 kgf-m or 1.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity2.00 litres (0.53 gallons)
Emissions
Chassis
Frame TypeOval steel tube
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height605 mm (23.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,300 mm (51.2 inches)
Total Width
Ground Clearance221 mm (8.7 inches)
Wheelbase909 mm (35.8 inches)
Dry Weight34.0 kg (75.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter160 mm (6.3 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter90 mm (3.5 inches)
Wheels
