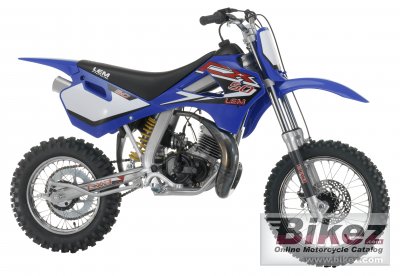

2006 Lem CX3 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Lem CX3.

Basic Specs

Year2006
MakeLem
ModelLem CX3
Cost

Engine

Displacement49.80 ccm (3.04 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke39.1 x 41.7 mm (1.5 x 1.6 inches)
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication3% mixture
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveChain
ClutchCentrifugal
Driveline

Performance

Horespower3.20 HP (2.3 kW)
Torque1.60 Nm (0.2 kgf-m or 1.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity2.49 litres (0.66 gallons)
Emissions

Chassis

Frame TypeOval steel tube
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height729 mm (28.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,575 mm (62.0 inches)
Total Width
Ground Clearance249 mm (9.8 inches)
Wheelbase1,080 mm (42.5 inches)
Dry Weight45.4 kg (100.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre2.50-14
Rear Tire/Tyre3.00-12
Front BrakesSingle disc
Front Brake Diameter180 mm (7.1 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter90 mm (3.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Lem CX3. This Minibike, cross model is powered by a Single cylinder, two-stroke engine with 49.80 ccm (3.04 cubic inches) of actual displacement before compression. Fueling is metered via allowing this machine to produce its 3.20 HP (2.3 kW) horsepower and 1.60 Nm (0.2 kgf-m or 1.2 ft.lbs) torque. According to our records engine heat of the Lem CX3 is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 2.50-14 and the rear is 3.00-12 . The entire package is supported by the frame, Oval steel tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Lem CX3 was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
