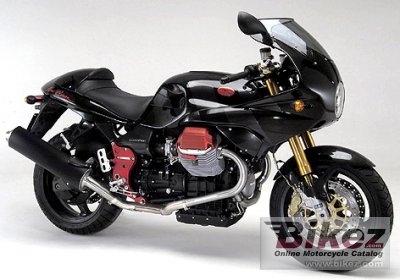

2006 Moto Guzzi LeMans Nero Corsa Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Moto Guzzi LeMans Nero Corsa.

Basic Specs

Year2006
MakeMoto Guzzi
ModelMoto Guzzi LeMans Nero Corsa
CostUS$ 14490. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1064.00 ccm (64.93 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke92.0 x 80.0 mm (3.6 x 3.1 inches)
Valves/Cylinder2
FuelingInjection. Magneti Marelli IAW Multipoint phased sequential fuel injection
IgnitionMagneti Marelli IAW electronic digital ignition
Exhaust
LubricationWet sump, forced oil, cartridge filter
CoolingAir

Drivetrain

Gearbox
Final Drive
ClutchDouble discs, dry, with hydraulic command
Driveline

Performance

Horespower91.00 HP (66.4 kW)
Torque94.92 Nm (9.7 kgf-m or 70.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.66 litres (5.46 gallons)
Emissions

Chassis

Frame TypeMonobeam frame
Rake25.0°
Trail103 mm (4.1 inches)
Front SuspensionOhlins USD fork, 43 mm compression/extension adjustable
Front Travel120 mm (4.7 inches)
Rear SuspensionCantilever swing arm with Ohlins mono shock compression/extension/preload adjustable
Rear Travel128 mm (5.0 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,210 mm (47.6 inches)
Total Length2,150 mm (84.6 inches)
Total Width785 mm (30.9 inches)
Ground Clearance178 mm (7.0 inches)
Wheelbase1,490 mm (58.7 inches)
Dry Weight226.0 kg (498.2 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter282 mm (11.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Moto Guzzi LeMans Nero Corsa. This Sport touring model is powered by a V2, four-stroke engine with 1064.00 ccm (64.93 cubic inches) of actual displacement before compression. Fueling is metered via Injection. Magneti Marelli IAW Multipoint phased sequential fuel injection allowing this machine to produce its 91.00 HP (66.4 kW) horsepower and 94.92 Nm (9.7 kgf-m or 70.0 ft.lbs) torque. According to our records engine heat of the Moto Guzzi LeMans Nero Corsa is moderated by Air. You'll need to get familiar with the transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 180/55-17 . The entire package is supported by the frame, Monobeam frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Moto Guzzi LeMans Nero Corsa was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
