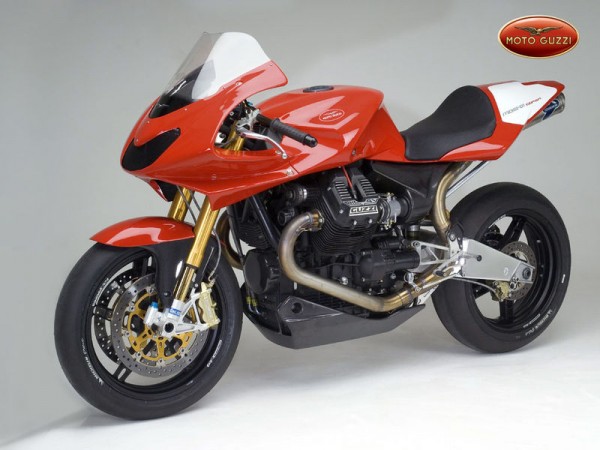

2006 Moto Guzzi MGS-01 Corsa Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Moto Guzzi MGS-01 Corsa.

Basic Specs

Year2006
MakeMoto Guzzi
ModelMoto Guzzi MGS-01 Corsa
TypeSport
CostUS$ 24990. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1225.00 ccm (74.75 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke100.0 x 78.0 mm (3.9 x 3.1 inches)
Valves/Cylinder
FuelingInjection. Magneti Marelli IAW Multipoint phased sequential fuel injection
IgnitionMarelli IA 15M Electronic Digital
Exhaust
LubricationWet sump, forced oil, cartridge filter
CoolingAir

Drivetrain

Gearbox
Final DriveChain
ClutchSintering Double Disc Hydraulic Drive
Driveline

Performance

Horespower122.00 HP (89.1 kW)
Torque112.81 Nm (11.5 kgf-m or 83.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.97 litres (4.75 gallons)
Emissions

Chassis

Frame TypeRectangular Section Single Beam
Rake23.5°
Trail95 mm (3.7 inches)
Front SuspensionOhlins 43 mm Adjustable USD Fork
Front Travel
Rear SuspensionAluminum Box Swingarm with Ohlins Adjustable Monoshock
Rear Travel
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,180 mm (46.5 inches)
Total Length2,010 mm (79.1 inches)
Total Width780 mm (30.7 inches)
Ground Clearance
Wheelbase1,422 mm (56.0 inches)
Dry Weight191.9 kg (423.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Moto Guzzi MGS-01 Corsa. This Sport model is powered by a V2, four-stroke engine with 1225.00 ccm (74.75 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection. Magneti Marelli IAW Multipoint phased sequential fuel injection allowing this machine to produce its 122.00 HP (89.1 kW) horsepower and 112.81 Nm (11.5 kgf-m or 83.2 ft.lbs) torque. According to our records engine heat of the Moto Guzzi MGS-01 Corsa is moderated by Air. You'll need to get familiar with the transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 180/55-17 . The entire package is supported by the frame, Rectangular Section Single Beam. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Moto Guzzi MGS-01 Corsa was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
