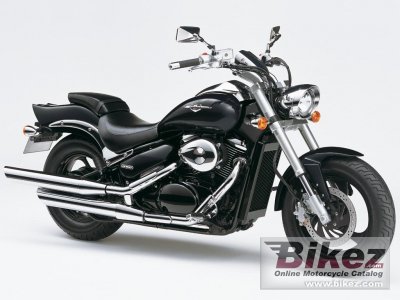

2006 Suzuki Intruder M800 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Suzuki Intruder M800.

Basic Specs

Year2006
MakeSuzuki
ModelSuzuki Intruder M800
Cost

Engine

Displacement805.00 ccm (49.12 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke83.0 x 74.4 mm (3.3 x 2.9 inches)
Valves/Cylinder
FuelingInjection
IgnitionElectronic ignition (transistorized)
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchWet multi plate
Driveline

Performance

Horespower55.00 HP (40.1 kW)
Torque69.00 Nm (7.0 kgf-m or 50.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity15.50 litres (4.10 gallons)
Emissions

Chassis

Frame Type
Rake32.3°
Trail
Front SuspensionInverted telescopic, coil spring
Front Travel
Rear SuspensionLink type, oil damped, coil spring, spring pre-load 7-way adjustable
Rear Travel
Seat
Seat Height700 mm (27.6 inches) If adjustable, lowest setting.
Alt. Seat Height805 mm (31.7 inches) If adjustable, highest setting.
Total Height1,130 mm (44.5 inches)
Total Length2,370 mm (93.3 inches)
Total Width860 mm (33.9 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1,655 mm (65.2 inches)
Dry Weight245.0 kg (540.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter180 mm (7.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Suzuki Intruder M800. This Custom / cruiser model is powered by a V2, four-stroke engine with 805.00 ccm (49.12 cubic inches) of actual displacement before 9.4:1 compression. Fueling is metered via Injection allowing this machine to produce its 55.00 HP (40.1 kW) horsepower and 69.00 Nm (7.0 kgf-m or 50.9 ft.lbs) torque. According to our records engine heat of the Suzuki Intruder M800 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Suzuki Intruder M800 was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
