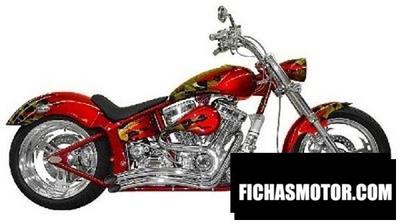

2006 Titan Sidewinder Softail Chopper Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Titan Sidewinder Softail Chopper.

Basic Specs

Year2006
MakeTitan
ModelTitan Sidewinder Softail Chopper
Cost

Engine

Displacement1750.00 ccm (106.79 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke101.6 x 113.0 mm (4.0 x 4.5 inches)
Valves/Cylinder2
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final Drive
Clutch
Driveline

Performance

Horespower112.00 HP (81.8 kW)
Torque121.00 Nm (12.3 kgf-m or 89.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption7.58 litres/100 km (13.2 km/l or 31.03 mpg)
Fuel Capacity17.41 litres (4.60 gallons)
Emissions175.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake35.0°
Trail
Front SuspensionInverted forks
Front Travel
Rear SuspensionDual chromed agusta shocks
Rear Travel
Seat
Seat Height584 mm (23.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance89 mm (3.5 inches)
Wheelbase1,882 mm (74.1 inches)
Dry Weight308.4 kg (680.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/90-19
Rear Tire/Tyre
Front BrakesSingle disc. 4-piston calipers
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. 4-piston calipers
Rear Brake Diameter292 mm (11.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Titan Sidewinder Softail Chopper. This Custom / cruiser model is powered by a V2, four-stroke engine with 1750.00 ccm (106.79 cubic inches) of actual displacement before 9.8:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 112.00 HP (81.8 kW) horsepower and 121.00 Nm (12.3 kgf-m or 89.2 ft.lbs) torque. According to our records engine heat of the Titan Sidewinder Softail Chopper is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 110/90-19 and the rear is . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 4-piston calipers front brakes and Single disc. 4-piston calipers rear brakes. The Titan Sidewinder Softail Chopper was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
