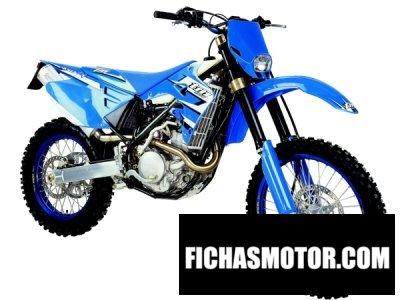

These are the known mechanical and performance specifications for your 2006 TM Racing EN 530 F e.s..
ModelTM Racing EN 530 F e.s.
TypeEnduro / offroad
Displacement527.70 ccm (32.20 cubic inches)
DetailsSingle cylinder, four-stroke
Bore/Stroke98.0 x 70.0 mm (3.9 x 2.8 inches)
FuelingCarburettor. Mikuni TDMR 41 mm.
IgnitionKokusan CDI Electronic with variable advance
LubricationDry sump with double rotor pump
ClutchMultiuple-disk in oil-bath with hydaulic control
Fuel Economy & Polution
Fuel Capacity8.00 litres (2.11 gallons)
Frame TypeCr-Mo steel Perimetral oval section
Alt. Seat Height
Wheels & Brakes
Front BrakesSingle disc
Front Brake Diameter270 mm (10.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter245 mm (9.6 inches)
It appears you're interested in specifications for the TM Racing EN 530 F e.s.. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 527.70 ccm (32.20 cubic inches) of actual displacement before 1.0:1 compression. Fueling is metered via Carburettor. Mikuni TDMR 41 mm. allowing this machine to produce its horsepower and torque. According to our records engine heat of the TM Racing EN 530 F e.s. is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-X21 and the rear is 140/90-X18 . The entire package is supported by the frame, Cr-Mo steel Perimetral oval section. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The TM Racing EN 530 F e.s. was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
