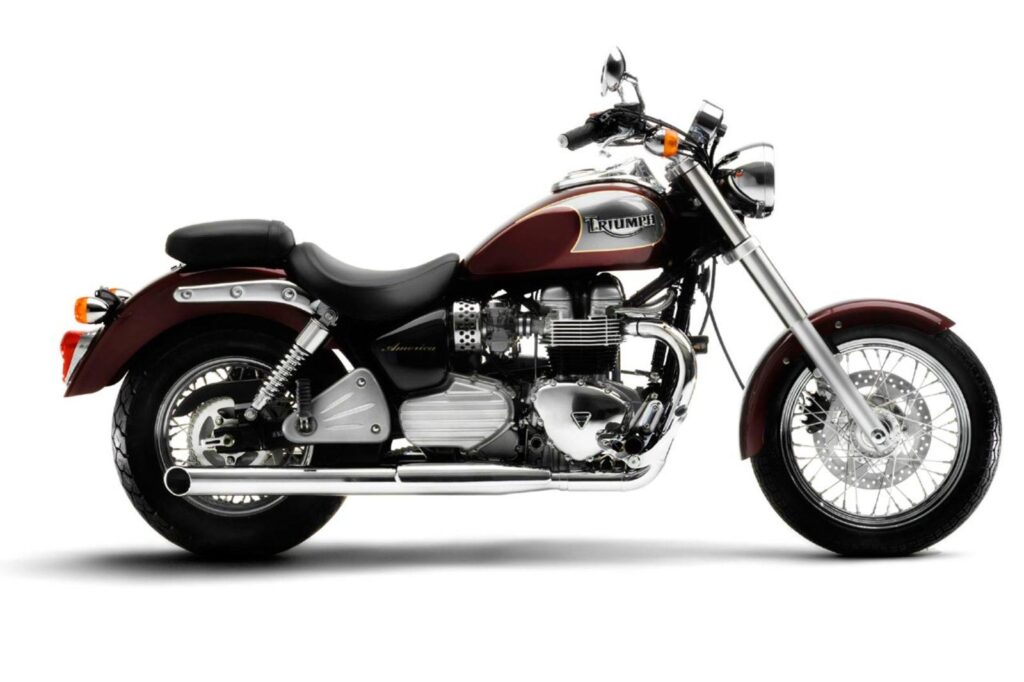

These are the known mechanical and performance specifications for your 2006 Triumph America.
Basic Specs
Engine
Displacement790.00 ccm (48.21 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke86.0 x 68.0 mm (3.4 x 2.7 inches)
Valves/Cylinder
FuelingCarburettor. Twin carburetors with throttle position sensor and electric carburetor heaters
IgnitionDigital - inductive type
Exhaust
Lubrication
CoolingAir
Performance
Horespower62.00 HP (45.3 kW)
Torque60.00 Nm (6.1 kgf-m or 44.3 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity16.60 litres (4.39 gallons)
Emissions
Chassis
Frame TypeTubular steel cradle
Rake33.3°
Trail
Front Suspension41mm forks
Front Travel
Rear SuspensionChromed spring twin rear shocks with adjustable preload
Rear Travel
Seat
Seat Height720 mm (28.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,170 mm (46.1 inches)
Total Length2,420 mm (95.3 inches)
Total Width960 mm (37.8 inches)
Ground Clearance
Wheelbase1,655 mm (65.2 inches)
Dry Weight226.0 kg (498.2 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre110/90-18
Rear Tire/Tyre170/80-R15
Front BrakesSingle disc
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter285 mm (11.2 inches)
Wheels
Comments
