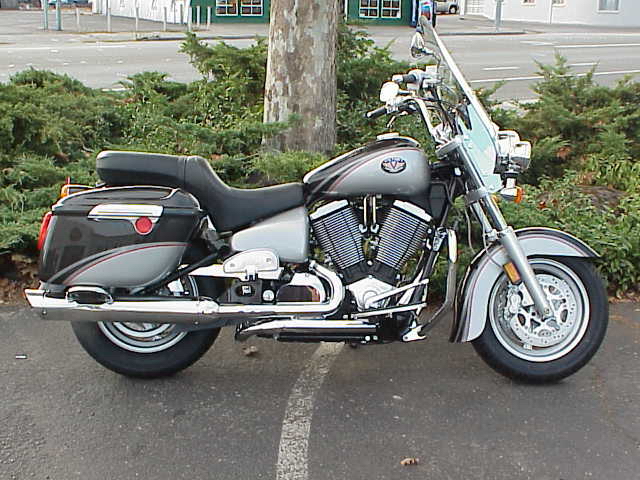

These are the known mechanical and performance specifications for your 2006 Victory Touring Cruiser.
Basic Specs
Engine
Displacement1507.70 ccm (92.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke97.0 x 102.0 mm (3.8 x 4.0 inches)
Valves/Cylinder4
FuelingInjection. Electronic Fuel Injection with 44mm throttle bodies
Ignition
ExhaustCrossover dual exhaust with changeable slash-cut tips
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.92 litres (5.00 gallons)
Emissions
Chassis
Frame Type
Rake30.0°
Trail
Front SuspensionConventional telescopic fork, 45mm diameter, 5.1in/130mm travel
Front Travel
Rear SuspensionSingle, mono-tube gas/triangulated steel swingarm w/ quick-change belt/ 4.0in. (102mm) travel/preload adjustable spring
Rear Travel
Seat
Seat Height719 mm (28.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,489 mm (98.0 inches)
Total Width
Ground Clearance
Wheelbase1,664 mm (65.5 inches)
Dry Weight326.6 kg (720.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/TyreMT90-B16
Rear Tire/Tyre160/80-B16
Front BrakesDouble disc
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter300 mm (11.8 inches)
Wheels
Comments
