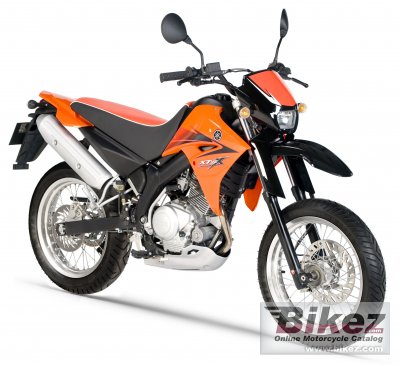

These are the known mechanical and performance specifications for your 2006 Yamaha XT 125 X.
Basic Specs

Engine
Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke54.0 x 54.0 mm (2.1 x 2.1 inches)
Valves/Cylinder
Fueling
IgnitionCDI
Exhaust
LubricationSeparate lubrication
CoolingAir
Performance
Horespower9.78 HP (7.1  kW)
Torque9.50 Nm (1.0 kgf-m or 7.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity10.00 litres (2.64 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionHydraulic telescopic fork
Front Travel60 mm (2.4 inches)
Rear SuspensionMonocross
Rear Travel125 mm (4.9 inches)
Seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,130 mm (44.5 inches)
Total Length2,110 mm (83.1 inches)
Total Width860 mm (33.9 inches)
Ground Clearance190 mm (7.5 inches)
Wheelbase1,335 mm (52.6 inches)
Dry Weight106.0 kg (233.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre100/80-17
Rear Tire/Tyre130/70-17
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
