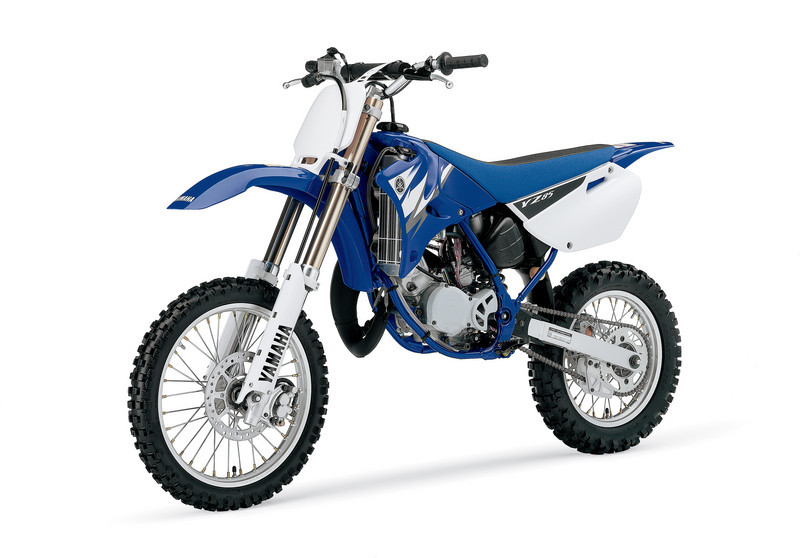

These are the known mechanical and performance specifications for your 2006 Yamaha YZ 85.
Basic Specs

Engine
Displacement84.70 ccm (5.17 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression8.2:1
Bore/Stroke47.5 x 47.8 mm (1.9 x 1.9 inches)
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingLiquid
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionSwinging arm (monocross)
Rear Travel
Seat
Seat Height864 mm (34.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,161 mm (45.7 inches)
Total Length1,818 mm (71.6 inches)
Total Width758 mm (29.8 inches)
Ground Clearance351 mm (13.8 inches)
Wheelbase1,255 mm (49.4 inches)
Dry Weight66.0 kg (145.5 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre70/100-17
Rear Tire/Tyre90/100-14
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter146 mm (5.7 inches)
Wheels
