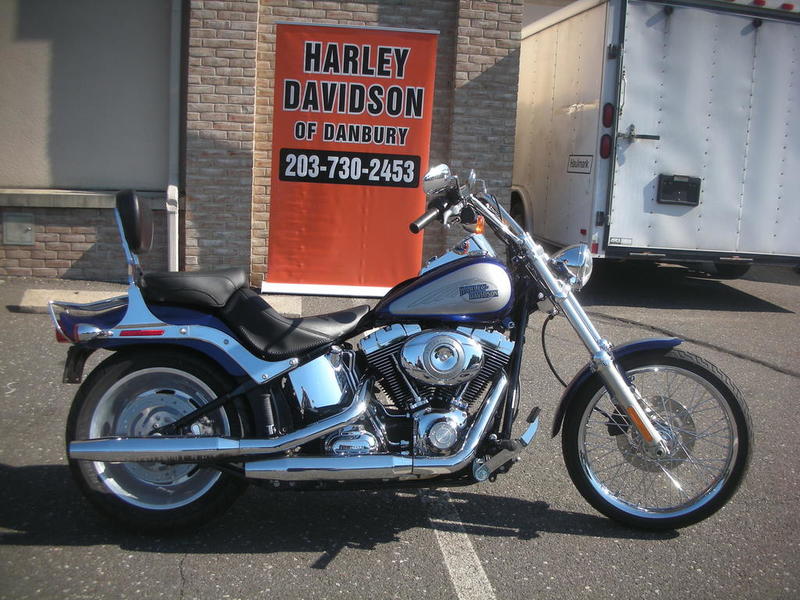

2007 Harley-Davidson FXSTC Softail Custom Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2007 Harley-Davidson FXSTC Softail Custom.

Basic Specs

Year2007
MakeHarley-Davidson
ModelHarley-Davidson FXSTC Softail Custom
CostUS$ 16895. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1573.25 ccm (96.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.3 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, staggered shorty duals
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline

Performance

Horespower
Torque119.19 Nm (12.2 kgf-m or 87.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.43 litres/100 km (22.6 km/l or 53.10 mpg)
Fuel Capacity18.92 litres (5.00 gallons)
Emissions102.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake32.0°
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height719 mm (28.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,400 mm (94.5 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,638 mm (64.5 inches)
Dry Weight304.8 kg (672.0 pounds)
Wet Weight318.9 kg (703.0 pounds)

Wheels & Brakes

Front Tire/Tyre100/90-H19
Rear Tire/Tyre200/55-R17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FXSTC Softail Custom. This Custom / cruiser model is powered by a V2, four-stroke engine with 1573.25 ccm (96.00 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its horsepower and 119.19 Nm (12.2 kgf-m or 87.9 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FXSTC Softail Custom is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 100/90-H19 and the rear is 200/55-R17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Harley-Davidson FXSTC Softail Custom was launched in 2007, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
