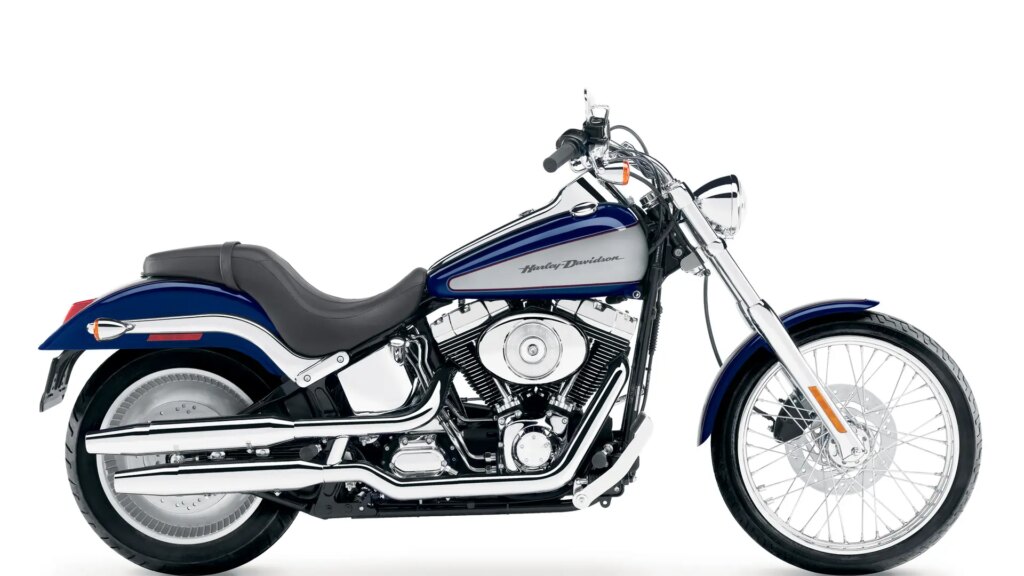

2007 Harley-Davidson FXSTD Softail Deuce Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2007 Harley-Davidson FXSTD Softail Deuce.

Basic Specs

Year2007
MakeHarley-Davidson
ModelHarley-Davidson FXSTD Softail Deuce
CostUS$ 17345. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1573.25 ccm (96.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.3 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, over/under shotgun duals
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline

Performance

Horespower
Torque121.76 Nm (12.4 kgf-m or 89.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.43 litres/100 km (22.6 km/l or 53.10 mpg)
Fuel Capacity18.54 litres (4.90 gallons)
Emissions102.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake32.0°
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height681 mm (26.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,423 mm (95.4 inches)
Total Width
Ground Clearance122 mm (4.8 inches)
Wheelbase1,692 mm (66.6 inches)
Dry Weight300.7 kg (663.0 pounds)
Wet Weight309.3 kg (682.0 pounds)

Wheels & Brakes

Front Tire/TyreMH90-21
Rear Tire/Tyre160/70-B17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FXSTD Softail Deuce. This Custom / cruiser model is powered by a V2, four-stroke engine with 1573.25 ccm (96.00 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its horsepower and 121.76 Nm (12.4 kgf-m or 89.8 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FXSTD Softail Deuce is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is MH90-21 and the rear is 160/70-B17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Harley-Davidson FXSTD Softail Deuce was launched in 2007, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
