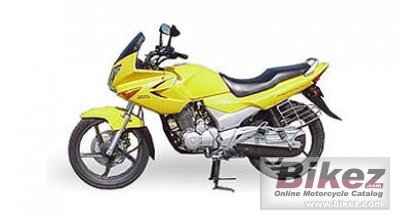

These are the known mechanical and performance specifications for your 2007 Hero Honda Karizma.
Basic Specs
Engine
Displacement223.00 ccm (13.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke65.5 x 66.2 mm (2.6 x 2.6 inches)
Valves/Cylinder
Fueling
IgnitionAMI- Advanced Microprocessor Ignition System
Exhaust
Lubrication
CoolingAir
Performance
Horespower17.00 HP (12.4 kW)
Torque18.35 Nm (1.9 kgf-m or 13.5 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity13.60 litres (3.59 gallons)
Emissions
Chassis
Frame TypeTubular single cradle, diamond type
Rake
Trail
Front SuspensionTelescopic Hydraulic Shock Absorbers
Front Travel
Rear SuspensionSwing arm with 5 step adjustable type hydraulic shock absorber
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height1,160 mm (45.7 inches)
Total Length2,125 mm (83.7 inches)
Total Width755 mm (29.7 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1,355 mm (53.3 inches)
Dry Weight150.0 kg (330.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre2.75-18
Rear Tire/Tyre100/90-18
Front BrakesSingle disc. Disc - 240mm Dia. Pad - Non Asbestoes type Drum - Drum Internal expanding shoe type (130mm) Liners - Non Asbestoes type
Front Brake Diameter276 mm (10.9 inches)
Rear BrakesExpanding brake (drum brake). Internal Expanding Shoe (130 mm)
Rear Brake Diameter130 mm (5.1 inches)
Wheels
