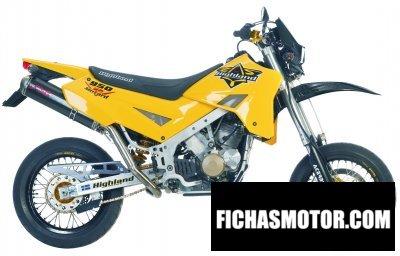

2007 Highland Super Motard Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2007 Highland Super Motard.

Basic Specs

Year2007
MakeHighland
ModelHighland Super Motard
Cost

Engine

Displacement936.00 ccm (57.11 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke95.0 x 66.0 mm (3.7 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. Highland integrated engine management system with ignition coils fitted directly on the spark plugs
Ignition
Exhaust
LubricationWet sump
Cooling

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower85.00 HP (62.0 kW)
Torque104.00 Nm (10.6 kgf-m or 76.7 ft.lbs)
Top Speed200.0 km/h (124.3 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame TypeRectangular section, CrMo steel and aluminum (7021-T6) swing arm
Rake
Trail
Front Suspension50 mm Marzocchi. 280 mm wheel travel, adjustable compression and rebound
Front Travel
Rear SuspensionÖhlins, 300 mm wheel travel, adjustable pre-load, compression and rebound
Rear Travel
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance270 mm (10.6 inches)
Wheelbase1,490 mm (58.7 inches)
Dry Weight166.0 kg (366.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre160/60-17
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter260 mm (10.2 inches)
Wheels

Comments

It appears you're interested in specifications for the Highland Super Motard. This Super motard model is powered by a V2, four-stroke engine with 936.00 ccm (57.11 cubic inches) of actual displacement before compression. Fueling is metered via Injection. Highland integrated engine management system with ignition coils fitted directly on the spark plugs allowing this machine to produce its 85.00 HP (62.0 kW) horsepower and 104.00 Nm (10.6 kgf-m or 76.7 ft.lbs) torque. According to our records engine heat of the Highland Super Motard is moderated by . You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 160/60-17 . The entire package is supported by the frame, Rectangular section, CrMo steel and aluminum (7021-T6) swing arm. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Highland Super Motard was launched in 2007, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Tuning kit for racing available.
