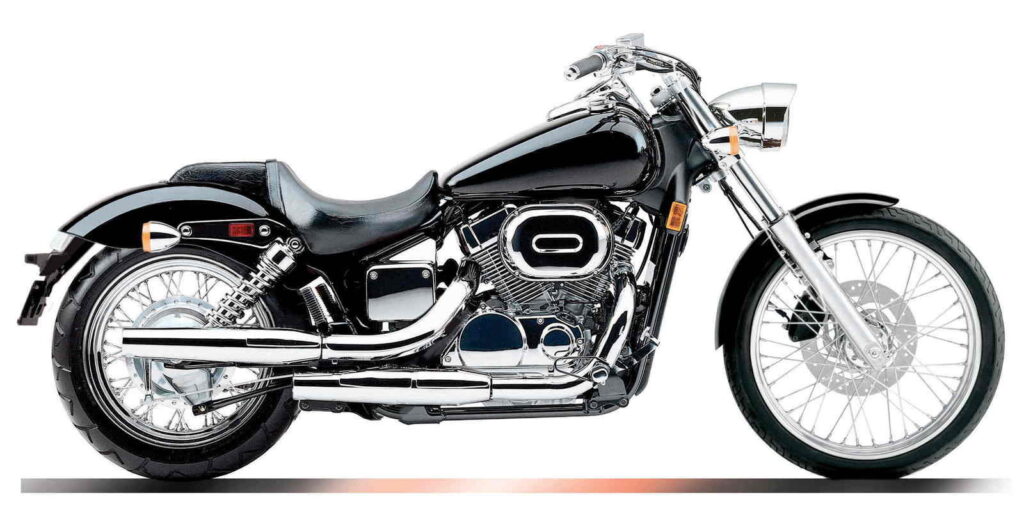

2007 Honda Shadow Spirit 750 DC (VT 750 DC) Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2007 Honda Shadow Spirit 750 DC (VT 750 DC).

Basic Specs

Year2007
MakeHonda
ModelHonda Shadow Spirit 750 DC (VT 750 DC)
CostUS$ 6449. Prices depend on country, taxes, accessories, etc.

Engine

Displacement745.00 ccm (45.46 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke79.0 x 76.0 mm (3.1 x 3.0 inches)
Valves/Cylinder3
FuelingCarburettor. Two 34mm diaphragm-type CV
IgnitionCD with electronic advance, two spark plugs per cylinder
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.62 litres (3.60 gallons)
Emissions

Chassis

Frame Type
Rake
Trail152 mm (6.0 inches)
Front Suspension41mm fork
Front Travel130 mm (5.1 inches)
Rear SuspensionDual shocks with five-position spring-preload adjustability
Rear Travel81 mm (3.2 inches)
Seat
Seat Height676 mm (26.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,646 mm (64.8 inches)
Dry Weight225.0 kg (496.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/80-19
Rear Tire/Tyre160/80-15
Front BrakesSingle disc
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda Shadow Spirit 750 DC (VT 750 DC). This Custom / cruiser model is powered by a V2, four-stroke engine with 745.00 ccm (45.46 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Two 34mm diaphragm-type CV allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda Shadow Spirit 750 DC (VT 750 DC) is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/80-19 and the rear is 160/80-15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Honda Shadow Spirit 750 DC (VT 750 DC) was launched in 2007, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: VT750DC
