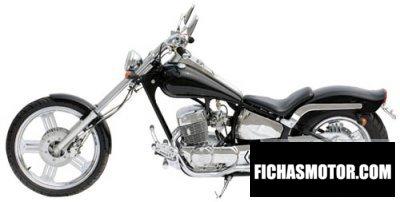

2007 Johnny Pag Spyder 300 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2007 Johnny Pag Spyder 300.

Basic Specs

Year2007
MakeJohnny Pag
ModelJohnny Pag Spyder 300
CostUS$ 4099. Prices depend on country, taxes, accessories, etc.

Engine

Displacement300.00 ccm (18.31 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM6500
Compression10.2:1
Bore/Stroke57.0 x 0.0 mm (2.2 x inches)
Valves/Cylinder2
FuelingCarburettor. Dual 26mm Keihin Vacuum carburetor
IgnitionCDI
ExhaustDouble Chrome Straight Pipes
LubricationForced Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchMultiplate oil bath
Driveline

Performance

Horespower23.80 HP (17.4 kW)
Torque18.50 Nm (1.9 kgf-m or 13.6 ft.lbs)
Top Speed120.7 km/h (75.0 mph)

Fuel Economy & Polution

Fuel Consumption3.61 litres/100 km (27.7 km/l or 65.16 mpg)
Fuel Capacity13.24 litres (3.50 gallons)
Emissions83.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake42.0°
Trail39 mm (1.5 inches)
Front SuspensionTriple Tree 39mm Fork
Front Travel39 mm (1.5 inches)
Rear SuspensionDual shocks (fully-adjustable)
Rear Travel
Seat
Seat Height508 mm (20.0 inches) If adjustable, lowest setting.
Alt. Seat Height584 mm (23.0 inches) If adjustable, highest setting.
Total Height
Total Length
Total Width
Ground Clearance152 mm (6.0 inches)
Wheelbase1,854 mm (73.0 inches)
Dry Weight163.3 kg (360.0 pounds)
Wet Weight172.4 kg (380.0 pounds)

Wheels & Brakes

Front Tire/Tyre80/90-21
Rear Tire/Tyre160/90-18
Front BrakesDouble disc. Dual-disc with twin-piston calipers
Front Brake Diameter
Rear BrakesSingle disc. Single disk with twin piston caliper
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Johnny Pag Spyder 300. This Custom / cruiser model is powered by a Twin, four-stroke engine with 300.00 ccm (18.31 cubic inches) of actual displacement before 10.2:1 compression. Fueling is metered via Carburettor. Dual 26mm Keihin Vacuum carburetor allowing this machine to produce its 23.80 HP (17.4 kW) horsepower and 18.50 Nm (1.9 kgf-m or 13.6 ft.lbs) torque. According to our records engine heat of the Johnny Pag Spyder 300 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 80/90-21 and the rear is 160/90-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Dual-disc with twin-piston calipers front brakes and Single disc. Single disk with twin piston caliper rear brakes. The Johnny Pag Spyder 300 was launched in 2007, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

ADDITIONS: Dual seat package (+ Dollars 229.00) Free Flow exhaust (+ Dollars 210.00)
