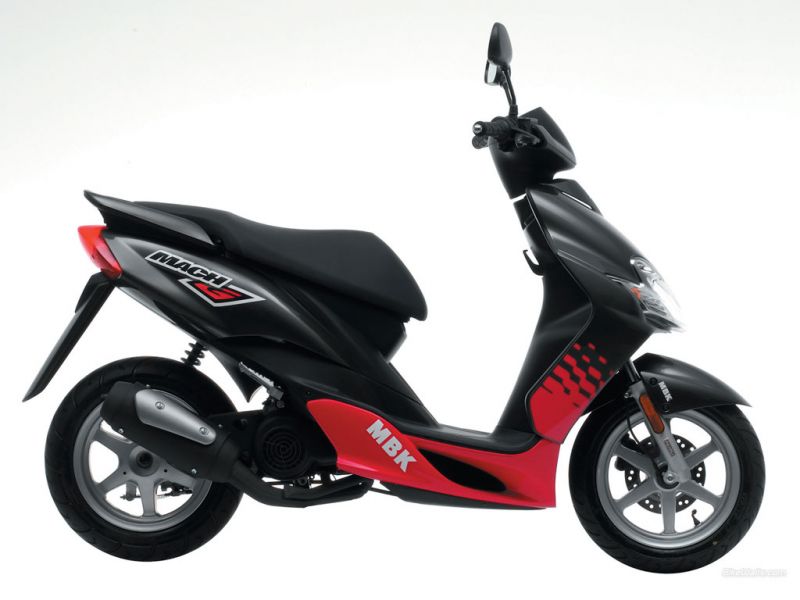

These are the known mechanical and performance specifications for your 2007 MBK MachG AC.
Basic Specs
Engine
Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression10.2:1
Bore/Stroke40.0 x 39.2 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor. Gurtner PY-12
IgnitionElectronic (C.D.I.)
Exhaust
LubricationSeparate lubrication
CoolingAir
Performance
Horespower2.15 HP (1.6 kW)
Torque2.46 Nm (0.3 kgf-m or 1.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.50 litres (1.45 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionHydraulic and telescopic fork
Front Travel70 mm (2.8 inches)
Rear SuspensionHydraulic unit swing
Rear Travel60 mm (2.4 inches)
Seat
Seat Height770 mm (30.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,065 mm (41.9 inches)
Total Length1,740 mm (68.5 inches)
Total Width675 mm (26.6 inches)
Ground Clearance132 mm (5.2 inches)
Wheelbase1,210 mm (47.6 inches)
Dry Weight76.0 kg (167.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre110/70-12
Rear Tire/Tyre130/70-12
Front BrakesSingle disc. Disc, Ø 190
Front Brake Diameter
Rear BrakesExpanding brake (drum brake). Drum, Ø 110
Rear Brake Diameter
Wheels
