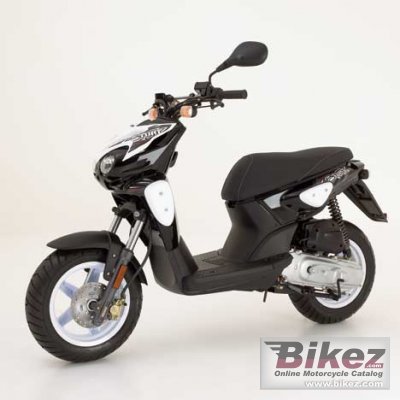

2007 MBK Stunt Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2007 MBK Stunt.

Basic Specs

Year2007
MakeMBK
ModelMBK Stunt
Cost

Engine

Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression11.2:1
Bore/Stroke40.0 x 39.2 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionElectronic (C.D.I.)
Exhaust
LubricationSeparate lubrication
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
Driveline

Performance

Horespower3.62 HP (2.6 kW)
Torque4.00 Nm (0.4 kgf-m or 3.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity6.50 litres (1.72 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionHydraulic and telescopic fork
Front Travel104 mm (4.1 inches)
Rear SuspensionHydraulic unit swing
Rear Travel100 mm (3.9 inches)
Seat
Seat Height787 mm (31.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,077 mm (42.4 inches)
Total Length1,785 mm (70.3 inches)
Total Width668 mm (26.3 inches)
Ground Clearance185 mm (7.3 inches)
Wheelbase1,202 mm (47.3 inches)
Dry Weight75.0 kg (165.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-12
Rear Tire/Tyre130/70-12
Front BrakesSingle disc. Disc, Ø 190
Front Brake Diameter
Rear BrakesExpanding brake (drum brake). Drum, Ø 110
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the MBK Stunt. This Scooter model is powered by a Single cylinder, two-stroke engine with 49.00 ccm (2.99 cubic inches) of actual displacement before 11.2:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 3.62 HP (2.6 kW) horsepower and 4.00 Nm (0.4 kgf-m or 3.0 ft.lbs) torque. According to our records engine heat of the MBK Stunt is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-12 and the rear is 130/70-12 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Disc, Ø 190 front brakes and Expanding brake (drum brake). Drum, Ø 110 rear brakes. The MBK Stunt was launched in 2007, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
