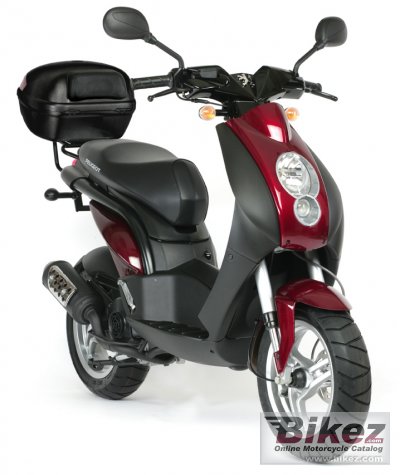

2007 Peugeot Ludix Trend Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2007 Peugeot Ludix Trend.

Basic Specs

Year2007
MakePeugeot
ModelPeugeot Ludix Trend
Cost

Engine

Displacement49.90 ccm (3.04 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke39.9 x 39.8 mm (1.6 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor. GURTNER PY 12
IgnitionC.D.I
Exhaust
LubricationSeparate lubrication by electric pump Dell’Orto driven by a control unit. The oil is injected directly into the carburettor.
CoolingAir

Drivetrain

Gearbox
Final DriveBelt
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity5.50 litres (1.45 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspensionreverse telescopic fork.
Front Travel73 mm (2.9 inches)
Rear Suspension1 central combined hydraulic spring-shock absorber.
Rear Travel65 mm (2.6 inches)
Seat
Seat Height
Alt. Seat Height
Total Height1,070 mm (42.1 inches)
Total Length1,650 mm (65.0 inches)
Total Width665 mm (26.2 inches)
Ground Clearance110 mm (4.3 inches)
Wheelbase1,210 mm (47.6 inches)
Dry Weight73.5 kg (162.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/80-10
Rear Tire/Tyre100/80-10
Front BrakesSingle disc. Single disc type, hydraulic control. Diameter of the brake piston : 32 mm Disc diameter and thickness : 155 – 3 mm
Front Brake Diameter32 mm (1.3 inches)
Rear BrakesExpanding brake (drum brake). Single cam drum type controlled by cable. Brake drum diameter : 110 mm Brake lining thickness : 3,8 mm
Rear Brake Diameter110 mm (4.3 inches)
Wheels

Comments

It appears you're interested in specifications for the Peugeot Ludix Trend. This Scooter model is powered by a Single cylinder, two-stroke engine with 49.90 ccm (3.04 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. GURTNER PY 12 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Peugeot Ludix Trend is moderated by Air. You'll need to get familiar with the transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 100/80-10 and the rear is 100/80-10 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Single disc type, hydraulic control. Diameter of the brake piston : 32 mm Disc diameter and thickness : 155 – 3 mm front brakes and Expanding brake (drum brake). Single cam drum type controlled by cable. Brake drum diameter : 110 mm Brake lining thickness : 3,8 mm rear brakes. The Peugeot Ludix Trend was launched in 2007, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
