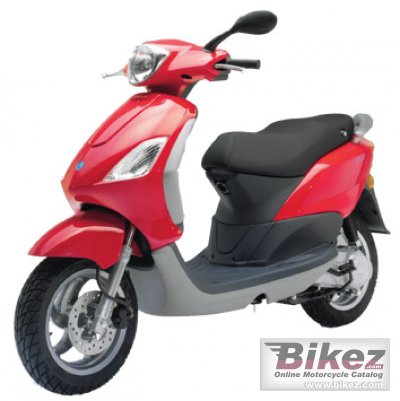

These are the known mechanical and performance specifications for your 2007 Piaggio Fly 50 2T.
Basic Specs
Engine
Displacement49.40 ccm (3.01 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke40.0 x 39.3 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionInductive
Exhaust
Lubrication
CoolingAir
Drivetrain
GearboxAutomatic
Final Drive
ClutchDry automatic centrifugal type
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.20 litres (1.90 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionØ 32 mm Telescopic fork
Front Travel
Rear SuspensionSingle hydraulic absorber
Rear Travel
Seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,880 mm (74.0 inches)
Total Width
Ground Clearance
Wheelbase
Dry Weight97.0 kg (213.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-12
Rear Tire/Tyre120/70-12
Front BrakesSingle disc
Front Brake Diameter200 mm (7.9 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter140 mm (5.5 inches)
Wheels
Comments
