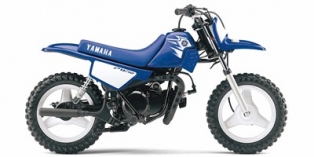

2007 Yamaha PW 50 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2007 Yamaha PW 50.

Basic Specs

Year2007
MakeYamaha
ModelYamaha PW 50
CostUS$ 1099. Prices depend on country, taxes, accessories, etc.

Engine

Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression6.0:1
Bore/Stroke40.0 x 39.2 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor. 12 mm Mikuni
IgnitionCDI
Exhaust
Lubrication
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity1.89 litres (0.50 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension22mm telescopic fork
Front Travel61 mm (2.4 inches)
Rear SuspensionDual shocks
Rear Travel51 mm (2.0 inches)
Seat
Seat Height485 mm (19.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height714 mm (28.1 inches)
Total Length1,245 mm (49.0 inches)
Total Width574 mm (22.6 inches)
Ground Clearance104 mm (4.1 inches)
Wheelbase856 mm (33.7 inches)
Dry Weight37.2 kg (82.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre2/10/2002
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Yamaha PW 50. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 49.00 ccm (2.99 cubic inches) of actual displacement before 6.0:1 compression. Fueling is metered via Carburettor. 12 mm Mikuni allowing this machine to produce its horsepower and torque. According to our records engine heat of the Yamaha PW 50 is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is and the rear is 2/10/2002. The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Yamaha PW 50 was launched in 2007, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
