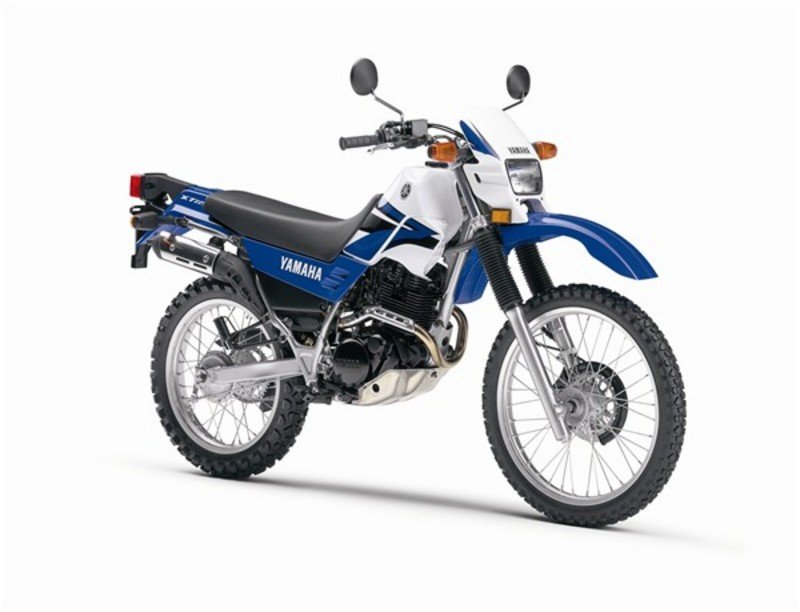

These are the known mechanical and performance specifications for your 2007 Yamaha XT 225.
Basic Specs
Year2007
MakeYamaha
ModelYamaha XT 225
TypeEnduro / offroad
CostUS$ 4199. Prices depend on country, taxes, accessories, etc.
Engine
Displacement223.00 ccm (13.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke70.0 x 58.0 mm (2.8 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor. 34mm Mikuni
IgnitionCDI
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity8.70 litres (2.30 gallons)
Emissions
Chassis
Frame Type
Rake26.0°
Trail
Front Suspension36mm telescopic fork
Front Travel226 mm (8.9 inches)
Rear SuspensionSwingarm w/rebound-adjustable single shock, 7.5´
Rear Travel
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,161 mm (45.7 inches)
Total Length2,070 mm (81.5 inches)
Total Width805 mm (31.7 inches)
Ground Clearance284 mm (11.2 inches)
Wheelbase1,349 mm (53.1 inches)
Dry Weight108.0 kg (238.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre2.75-21
Rear Tire/Tyre120/80-18
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
Wheels
Comments
