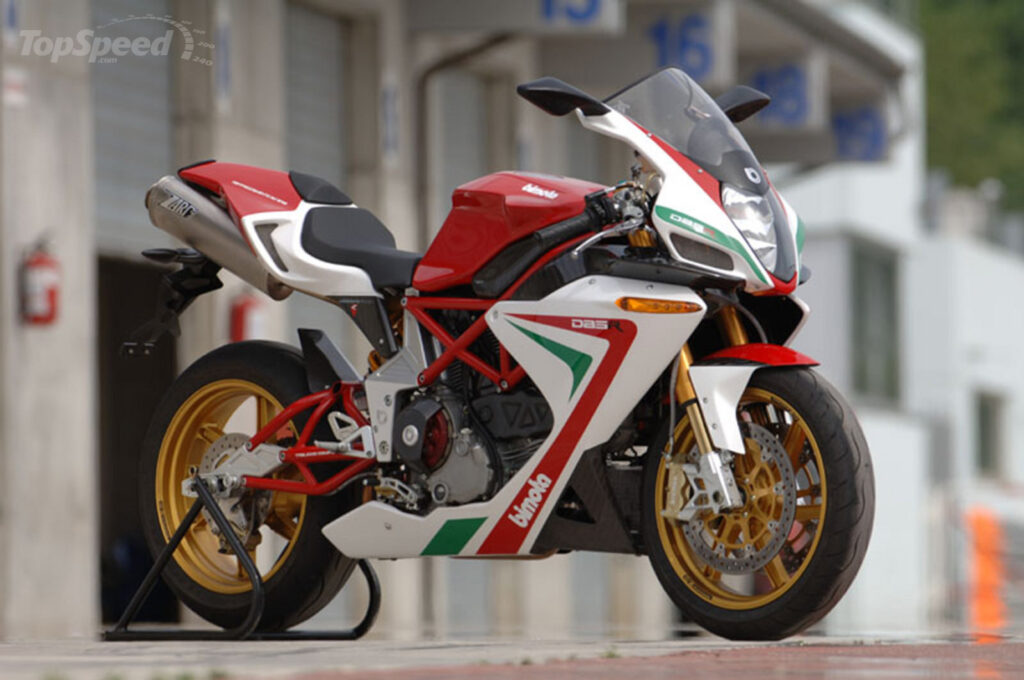

These are the known mechanical and performance specifications for your 2008 Bimota DB5S.
Basic Specs
Engine
Displacement1079.00 ccm (65.84 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke98.0 x 71.5 mm (3.9 x 2.8 inches)
Valves/Cylinder2
FuelingInjection. Electronic fule injection-45mm throttle body
Ignition
Exhaust
LubricationWet sump
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchOil bath multi-plate with hydraulic control
Driveline
Performance
Horespower95.00 HP (69.3 kW)
Torque102.97 Nm (10.5 kgf-m or 76.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity16.00 litres (4.23 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionUD Marzocchi TiN Coated Fork Full Adjustable (Pre-load, Compression, Rebound)
Front Travel
Rear SuspensionMonoshock Extreme Tech Full Adjustable (Pre-load -External Hydraulic Device, Compression, Rebound
Rear Travel
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,230 mm (48.4 inches)
Total Length2,045 mm (80.5 inches)
Total Width750 mm (29.5 inches)
Ground Clearance170 mm (6.7 inches)
Wheelbase1,440 mm (56.7 inches)
Dry Weight185.0 kg (407.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesDouble disc. Double Ø320 mm Floating Discs Brembo, Radial Caliper Brembo 4-Pistons, 4-Pads
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Ø230 mm Disc Brembo, 2-Pistons, 2-Pads Brembo
Rear Brake Diameter230 mm (9.1 inches)
Wheels
