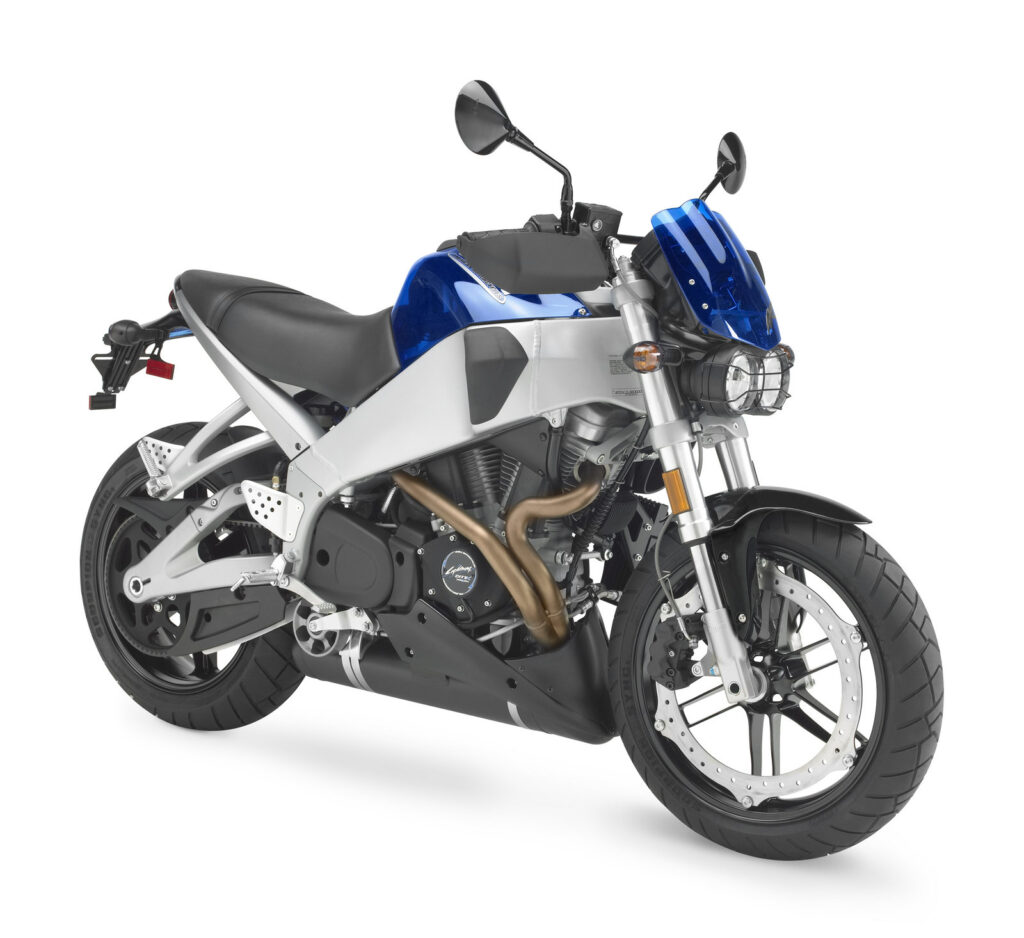

2008 Buell Lightning CityX XB9SX Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 Buell Lightning CityX XB9SX.

Basic Specs

Year2008
MakeBuell
ModelBuell Lightning CityX XB9SX
CostUS$ 8895. Prices depend on country, taxes, accessories, etc.

Engine

Displacement983.28 ccm (60.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke
Valves/Cylinder2
FuelingInjection. 45 mm down draft DDFI III fuel injection
Ignition
ExhaustTuned, tri-pass resonance chamber with mass-centralized mounting
LubricationDry-sump
CoolingOil & air

Drivetrain

Gearbox5-speed
Final DriveBelt
ClutchWet, multi-plate, compensated
Driveline

Performance

Horespower92.00 HP (67.2 kW)
Torque94.92 Nm (9.7 kgf-m or 70.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.45 litres (3.82 gallons)
Emissions

Chassis

Frame TypeAluminum frame with Uniplanar™ powertrain vibration isolation system, fuel in frame
Rake21.0°
Trail
Front Suspension43 mm Showa inverted forks with adjustable compression damping, rebound damping and spring preload
Front Travel120 mm (4.7 inches)
Rear SuspensionShowa coil-over monoshock with adjustable compression damping, rebound damping and spring preload
Rear Travel129 mm (5.1 inches)
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length1,935 mm (76.2 inches)
Total Width820 mm (32.3 inches)
Ground Clearance110 mm (4.4 inches)
Wheelbase1,321 mm (52.0 inches)
Dry Weight176.9 kg (390.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Buell Lightning CityX XB9SX. This Naked bike model is powered by a V2, four-stroke engine with 983.28 ccm (60.00 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. 45 mm down draft DDFI III fuel injection allowing this machine to produce its 92.00 HP (67.2 kW) horsepower and 94.92 Nm (9.7 kgf-m or 70.0 ft.lbs) torque. According to our records engine heat of the Buell Lightning CityX XB9SX is moderated by Oil & air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Aluminum frame with Uniplanar™ powertrain vibration isolation system, fuel in frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Buell Lightning CityX XB9SX was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
