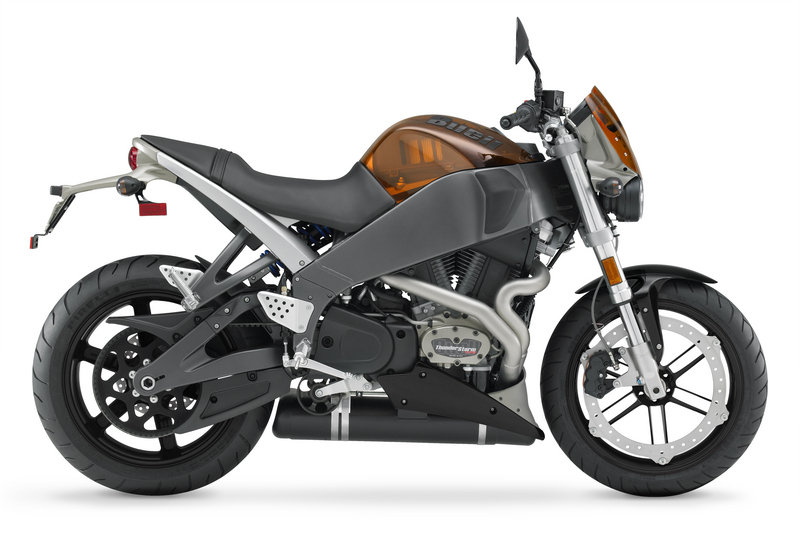

2008 Buell Lightning XB12STT Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 Buell Lightning XB12STT.

Basic Specs

Year2008
MakeBuell
ModelBuell Lightning XB12STT
CostUS$ 10495. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1202.88 ccm (73.40 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke
Valves/Cylinder2
FuelingInjection. 49 mm down draft DDFI III fuel injection
Ignition
ExhaustTuned, tri-pass resonance chamber with InterActive valve and mass-centralized mounting
LubricationDry sump
CoolingOil & air

Drivetrain

Gearbox5-speed
Final DriveBelt
ClutchWet, multi-plate, compensated, reduced lever effort
Driveline

Performance

Horespower103.00 HP (75.2 kW)
Torque113.90 Nm (11.6 kgf-m or 84.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame TypeAluminum frame with Uniplanar
Rake23.1°
Trail
Front Suspension43 mm Showa inverted forks with adjustable compression damping, rebound damping and spring preload
Front Travel143 mm (5.6 inches)
Rear SuspensionShowa coil-over monoshock with adjustable compression damping, rebound damping and spring preload
Rear Travel143 mm (5.6 inches)
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length2,080 mm (81.9 inches)
Total Width820 mm (32.3 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1,372 mm (54.0 inches)
Dry Weight181.4 kg (400.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Buell Lightning XB12STT. This Naked bike model is powered by a V2, four-stroke engine with 1202.88 ccm (73.40 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. 49 mm down draft DDFI III fuel injection allowing this machine to produce its 103.00 HP (75.2 kW) horsepower and 113.90 Nm (11.6 kgf-m or 84.0 ft.lbs) torque. According to our records engine heat of the Buell Lightning XB12STT is moderated by Oil & air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Aluminum frame with Uniplanar. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Buell Lightning XB12STT was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
